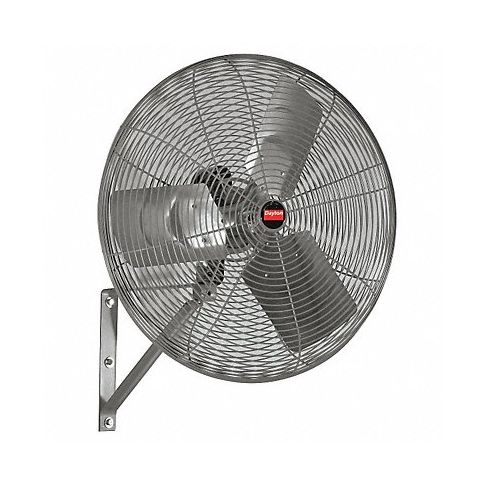

Stndrd Dty Indstrl Fan 18 Blde Dia 2Spd MPN:7DC96
SKU
226-CXO-7DC96
Stndrd Dty Indstrl Fan 18 Blde Dia. 2Spd
Introducing the Standard Duty Industrial Fan from Dayton - the perfect cooling solution for heavy manufacturing areas and other dusty or dirty environments where floor space is limited. These fans are built to last, with heavier-gauge materials, a higher-horsepower motor, and robust motor bearings that ensure longevity. Designed to fit easily on walls, ceilings, or beams, these wall-mount fans won't take up precious floor space while providing effective cooling in busy areas of manufacturing plants, warehouses, and shipping operations. The 18-inch blade diameter and powerful motor move large volumes of air to create a comfortable, temperature-controlled environment, while the guards protect the blades from damage and prevent accidental injuries. Upgrade your industrial workspace with the Standard Duty Industrial Fan from Dayton - invest in quality cooling solutions that maximize productivity and comfort.
Top product features:
- High-Quality Materials: These fans are built to last, with heavier-gauge materials, that ensure durability and longevity.
- Powerful Motor: The higher-horsepower motor provides effective cooling in busy areas of manufacturing plants, warehouses, and shipping operations.
- Wall-Mount Design: Attach to a wall, ceiling or beam so it won't take up floor space, block traffic flow, or create a tripping hazard.
Top product applications:
- Industrial Cooling: The fans can be used for cooling heavy manufacturing areas and other dusty or dirty environments where floor space is limited.
- Warehouse Temperature Control: These wall-mount fans can help maintain a temperature-controlled environment in warehouses, storing goods that require specific temperatures to preserve their quality or avoid damage.
- Shipping Facilities Ventilation: Air circulators like these are commonly used in shipping facilities to create airflow for both people and products moving through the space, keeping them cool, fresh, and comfortable during the entire process.
Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 18 in
- Wheeled Base Stationary
- Oscillation Oscillating
- Watts 183/147
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 2900/4500 cfm
- Motor HP 1/4
- RPM 1075/700
- Amps 1.7/.1.6
- Fan Mounting Location Wall
- Air Velocity @ 10 Ft. 970/670
- Air Velocity @ 20 Ft. 360/310
- Air Velocity @ 40 Ft. 110/95
- Assembly Required No
- Sound Level 70dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball
- Fan Cord Length 10 ft
- Height 23 in
- Width 23 in
- Depth 14-1/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Guard Material Steel
- Wire Guard Finish Gray Polyester Powder Coated
- Drive Type Direct
- Standards UL, cUL, OSHA
- Includes Mounting Bolts, Safety Support Cable, Assembly Hardware
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7DC96
- MPN: 7DC96
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000LDDV4I, B000LEWRLA, B014GAO3RA
Product info last updated on December 9, 2024 9:35pm UTC Category: Cooling Fans and Air Circulators
