Stndrd Dty Indstrl Fan 18 Blde Dia 2Spd MPN:7DC93
SKU
226-CXO-7DC93

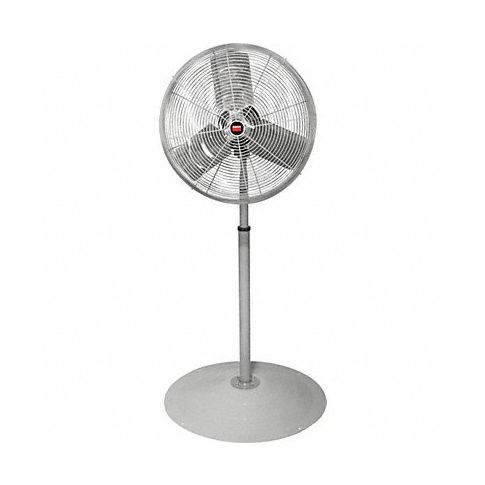

Stndrd Dty Indstrl Fan 18 Blde Dia. 2Spd
Industrial pedestal fans are essential for keeping large workspaces, such as manufacturing plants or warehouses cool, while also preventing injuries caused by moving parts or hot machinery. The Standard-Duty Industrial Fan from Dayton offers reliable air circulation that can be adjusted to a height suitable for both humans and equipment, providing the perfect blend of coolness and safety. With a powerful motor designed to handle continuous use in demanding conditions and heavy-duty construction materials to endure daily wear and tear, this fan guarantees consistent performance and longevity, all while standing stable with its pedestal base. In addition, the enclosed guards add an extra layer of safety to the fan blades while also allowing it to operate smoothly without any obstructions.
Top product features:
- Heavy-gauge materials for durability and daily use
- Powerful motor to drive fan blades and move large volumes of air
- Enclosed guards for protection from damage and injury
Top product applications:
- Manufacturing plants to cool down workspaces and keep employees comfortable during hot days
- Warehouses to circulate air and prevent temperature buildup around stored products
- Shipping operations to protect delicate items from temperature fluctuations during transit
Standard-duty industrial pedestal fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 18 in
- Wheeled Base Stationary
- Oscillation Non-Oscillating
- Watts 183/147
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 2900/4500 cfm
- Motor HP 1/4
- RPM 1075/700
- Amps 1.7/.1.6
- Fan Mounting Location Pedestal
- Air Velocity @ 10 Ft. 970/670
- Air Velocity @ 20 Ft. 360/310
- Air Velocity @ 40 Ft. 110/95
- Assembly Required No
- Sound Level 70dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball
- Fan Cord Length 10 ft
- Height 23 in
- Width 23 in
- Depth 14-1/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Guard Material Steel
- Wire Guard Finish Gray Polyester Powder Coated
- Drive Type Direct
- Standards UL, cUL, OSHA
- Includes Mounting Bolts, Hex Key, Assembly Hardware
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7DC93
- MPN: 7DC93
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
