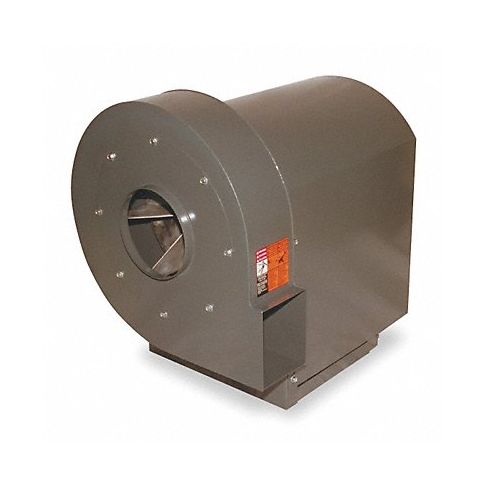

High-pressure, radial blade, belt-drive blower is great for industrial applications where clean or light dust loading conditions exist. Comes complete with weatherproof drive cover and dynamically balanced, heavy-duty die-cast aluminum wheels. Self-aligning ball bearing pillow blocks.
Technical Specifications
- Item High Pressure Blower
- Type With Drive Package
- Wheel Dia. (In.) 10-5/8
- Voltage 208-230/460
- Motor HP 1-1/2
- CFM @ 1.000-In. SP 709 @3350 RPM
- CFM @ 2.000-In. SP 719 @3600 RPM
- CFM @ 3.000-In. SP 692 @3700 RPM
- CFM @ 4.000-In. SP 651 @3750 RPM
- CFM @ 5.000-In. SP 607 @3800 RPM
- CFM @ 6.000-In. SP 554 @3830 RPM
- CFM @ 7.000-In. SP 510 @3900 RPM
- CFM @ 8.000-In. SP 475 @4000 RPM
- CFM @ 9.000-In. SP 438 @4100 RPM
- CFM @ 10.00-In. SP 410 @4225 RPM
- CFM @ 11.00-In. SP 412 @4400 RPM
- dBA @ 5 Feet 90
- Max. Inlet Temp. (Deg. F) 180
- Max. Ambient Temp. (F) 104
- Phase 3
- Hz 60
- Full Load Amps 4.3-4.0/2.0
- Motor Type Three Phase
- Motor RPM 3495
- Motor Enclosure Open Dripproof
- Motor Insulation Class F
- Motor Frame 143T
- Max. Blower RPM 4400
- Bearing Type Ball
- Housing Height (In.) 21
- Housing Width (In.) 20
- Housing Length (In.) 16
- Discharge Height (In.) 4
- Discharge Width (In.) 3-1/2
- Inlet Dia. (In.) 6
- Wheel Width (In.) 3
- Rotation CW
- Shaft Dia. (In.) 3/4
- Wheel Material Aluminum
- Housing Material Steel
- Housing Finish Gray Polyester Epoxy
- Includes 4L280, 2NKY4, 4C129, AK2834, 1VP4078
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7D757
- MPN: 7D757
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
