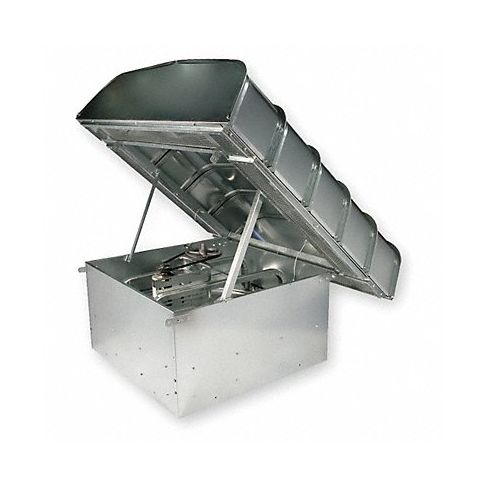

Steel 35.4 Dia 41 H Roof Fan w.Motor MPN:7CF91
This steel roof fan features an impressive airflow rate measuring 21,279 CFM with a volume of 3850 RPM ideal for exhausting hot air or circulating cool air in large-scale commercial buildings such as warehouses, factories, and refrigeration facilities. It comes equipped with an efficient motor rated at 1/4 hp while having a pitched blade construction designed to maximize performance. With a steel construction known for its sturdiness and durability, this fan will deliver consistent results for years making it an excellent choice for businesses operating in extreme weather conditions seeking reliable operation for commercial spaces looking to maintain a comfortable working environment by keeping temperature under control while optimizing operational budgets on energy expenses.
Technical Specifications
- Item Exhaust Ventilator
- Blade Dia. 42 in
- Voltage - Roof Ventilators 115 V AC/208-230 V AC
- Motor HP - Roof Ventilators 3/4
- Overall Height - Roof Ventilators 40 1/2 in
- Overall Width - Roof Ventilators 78 in
- Drive Type - Roof Ventilators Belt Drive
- Style - Roof Ventilators Hooded
- Item - Roof Ventilators Exhaust Ventilator
- Base Size - Roof Ventilators 46 1/2 in x 46 1/2 in
- CFM @ 0.000-In. SP 11,485
- CFM @ 0.125-In. SP 9885
- CFM @ 0.250-In. SP 7250
- CFM @ 0.375-In. SP 6420
- Max. Ambient Temp. (F) 104
- Max. Inlet Temp. (Deg. F) 104
- Hz 60
- Phase 1
- Full Load Amps 11.0/5.5-5.5
- Max. BHP 0.90
- Bearing Type Regreasable Pillow Block
- Motor RPM 1725
- Motor Type Capacitor-Start, Capacitor-Run
- Motor Enclosure Open Dripproof
- Max. Depth (In.) 72
- Mounting Position Horizontal
- Frame Material Galv Steel
- Propeller Material Steel
- Number of Blades 6
- Fan RPM 482
- Bearing Size (In.) 1-1/4
- Shaft Dia. (In.) 1-1/4
- Assembled/Unassembled Unassembled
- Includes Hood and Drive Package
- Dimension A 46-1/2 in
- Dimension B 78 in
- Dimension C 72 in
- Dimension D 40-1/2 in
- Dimension E 24-1/2 in
- Dimension F 10 in
- Recommended 12 3/8"H Roof Curb Item No. 2ZV85
- Recommended 6 3/8"H Roof Curb Item No. 3C597
- Recommended Gravity Backdraft Damper Item No. 6WRK7
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7CF91
- MPN: 7CF91
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Axial Downblast Roof Exhaust Fans with Motor
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 3, 2023 11:50pm UTC Category: Roof Ventilators
