SppFn DrPkg 24In Bld Dia G Steel 115V MPN:7CC04
SKU
226-CXO-7CC04
SppFn DrPkg 24In Bld Dia G Steel 115V
The SPPfn DrPkg 24 Bluetooth Diameter Glove-compatible Electric Drill with a capacity of drilling into steel, brass or wood provides power and precision for various applications such as construction or general repair work. Its lightweight design delivers ease of use and portability while its durable construction ensures long-lasting performance and reliability. The drill also comes with accessories like 13mm 9-tooth saw blade, sanding pad, Allen wrench, and belt hook to enable users to handle different tasks with one tool. Typical customers for this product include do-it-yourself enthusiasts, tradespeople or anyone who requires a reliable electric drill for their daily DIY tasks.

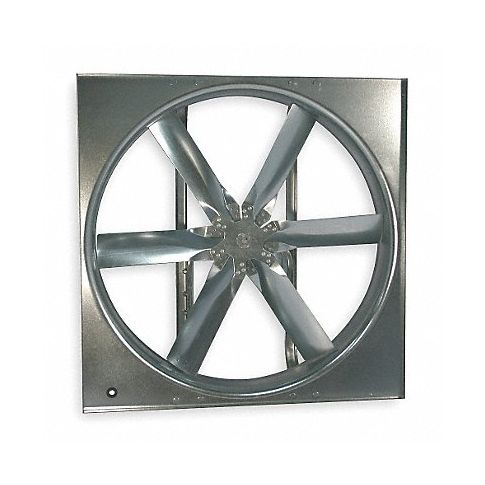

Standard-duty supply fan features 6-blade galvanized-steel propellers and rigid drive-frame rails. Has variable pitch, adjustable motor pulley that helps optimize fan performance. Designed for commercial applications requiring high volumes of air at low static pressures. Air handling-quality bearings meet a minimum of L10-100,000 hours. Motors, sheaves, bushings, and belts are packed separately when complete fan with drive package is ordered. Has regreasable pilllow block ball bearings. Mount supply fan vertically and for exhaust horizontal.
Technical Specifications
- Item Supply Fan w/Drive Package
- Fan Duty Rating Standard
- Motor Enclosure Open Dripproof
- Blade Dia. 24 in
- Drive Type Belt
- Exhaust/Supply Fan Item Supply Fan
- Fan Voltage 115 V AC
- Exhaust/Supply Fan Motor HP 1/3
- Drive Package With Motor Included Yes
- Fan RPM 1012
- CFM @ 0.000-In. SP 5292
- CFM @ 0.125-In. SP 4830
- CFM @ 0.250-In. SP 4207
- Sones @ 0.000-In. SP @ 5 Ft. 21
- Sones @ 0.125-In. SP @ 5 Ft. 20
- Max. BHP 0.39
- Max. Inlet Temp. 104 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Phase 1
- Full Load Amps 6.6/3.0-3.3
- Motor Type Split Phase
- Motor Insulation Class B
- Motor RPM 1725
- Bearing Size 3/4 in
- Bearing Type Sealed Pillow Block
- Number of Blades 6
- Blade Material Steel
- Shaft Dia. 3/4 in
- Outside Dia. 28 in
- Height 28 in
- Width 28 in
- Overall Depth 18 in
- Max. Depth 18 in
- Flange Width 1 in
- Mounting Position Vertical or Horizontal
- Frame Material Galvanized Steel
- Intake Guard No. 1WBU3
- Motorized Wall Galv. Shutter Stock No. 3C727
- Stock No. 1WDC5
- Venturi Clearance Dia. 24-3/8 in
- Wall Collar Stock No. 1WBV1
- Wall Housing Item No. 3FKF8
- Weatherhood No. 1WBV9
- Assembled/Unassembled Unassembled
- Standards AMCA
- Includes Drive Package
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7CC04
- MPN: 7CC04
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Axial Exhaust and Supply Fans with Motor
- GDS Family Name: Exhaust Fans
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Air collectors
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
Category: Exhaust Fans
