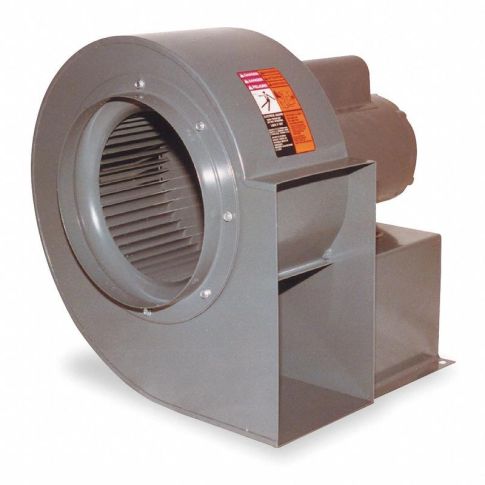

Direct Drive Blower 208-230/460 V 3 Ph MPN:7AP86

Single-Inlet Forward Curve Direct-Drive Blowers

• Housing can be rotated to 8 discharge positions in each rotation Welded steel construction Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°F
Provide high-volume ventilation when duct systems are required. Motor packed separately when ordered with blower.

Technical Specifications

• Item Blower
• Type With Motor
• Wheel Dia. (In.) 10-5/8
• CFM @ 0.000-In. SP 1510
• CFM @ 0.125-In. SP 1450
• CFM @ 0.250-In. SP 1400
• CFM @ 0.500-In. SP 1290
• CFM @ 0.750-In. SP 1200
• CFM @ 1.250-In. SP 1000
• dBA @ 5 Feet 63
• Blower RPM 1725
• Max. Inlet Temp. (Deg. F) 180
• Max. Ambient Temp. (F) 104
• Voltage 208-230/460
• Hz 60
• Phase Three
• Full Load Amps 2.8-2.8/1.4
• Motor HP 3/4
• Motor RPM 1725
• Motor Type 3-Phase
• Motor Enclosure Totally Enclosed Fan-Cooled
• Bearing Type Ball
• Height (In.) 21
• Width (In.) 16
• Depth (In.) 17
• Inlet Dia. (In.) 10
• Outlet Height (In.) 11-3/4
• Outlet Width (In.) 8
• Wheel Width (In.) 5-1/4
• Wheel Bore (In.) 5/8
• Wheel Material Steel
• Rotation CW Viewing Drive Side
• Housing Material Steel
• Housing Finish Gray Polyester Epoxy
• Assembled/Unassembled Unassembled

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7AP86
• MPN: 7AP86

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414802015
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
