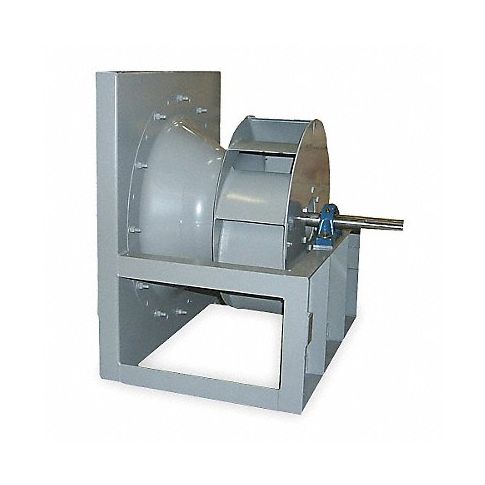

Plenum Fan Whl Dia 24 1/2 In w/ Dr Pkg MPN:7AL98
Plenum Fan Whl Dia 24 1/2 In w/ Dr Pkg
The Plenum Fan Whl Dia 24 1/2 In w/ Dr Pkg is an essential ventilation tool for industrial and commercial spaces that contain flammable materials such as offices, schools, hospitals or manufacturing sites. With its large 24.5-inch diameter fan design and powerful motor offering low operational costs this model ensures consistent airflow control for high ceilings or large scale settings making it perfect for blower fans and industrial accessories application. Additionally the pre-wired construction facilitates easy installation while meeting all safety standards providing maximum reliability when in use.
Buy Dayton item #7AL98 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Plenum Fan
- Type With Drive Package
- Wheel Dia. (In.) 24-1/2
- CFM @ 0.250-In. SP 8865
- CFM @ 0.500-In. SP 8661
- CFM @ 0.750-In. SP 8457
- CFM @ 1.000-In. SP 8241
- CFM @ 1.250-In. SP 7993
- CFM @ 1.500-In. SP 7744
- CFM @ 1.75-In. SP 7496
- CFM @ 2.000-In. SP 7223
- CFM @ 2.500-In. SP 6574
- CFM @ 3.000-In. SP 5722
- Sones @ 0.250-In. SP @ 5 Ft. 24
- Sones @ 1.500-In. SP @ 5 Ft. 22
- Max. Inlet Temp. (Deg. F) 104
- Max. Ambient Temp. (F) 104
- Voltage 208-230/460
- Hz 60
- Phase 3
- Full Load Amps 14.8-13.4/6.7
- Motor HP 5
- Motor Type 3-Phase
- Motor Enclosure Totally Enclosed Fan Cooled
- Max. BHP 4.983
- Max. Wheel RPM 2000
- Motor RPM 1745
- Fan RPM 1378
- Bearing Type Ball
- Shaft Dia. (In.) 1-11/16
- Shaft Centerline Height (In.) 17
- Frame Height (In.) 34
- Frame Width (In.) 34
- Frame Depth (In.) 23
- Shaft Extension Beyond Frame (In.) 4-1/2
- Mounting Position Horizontal
- Frame Material Steel
- Frame Finish Baked Enamel
- Wheel Material Steel
- Assembled/Unassembled Unassembled
- Agency Compliance AMCA
- Remarks Belt Provided is for Typical Motor Mounting Location
- Includes Drive Package
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7AL98
- MPN: 7AL98
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414510010
- GDS Category Name: Plenum and Plug Fans with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 19, 2023 11:00am UTC
Category: Industrial Blowers and Accessories
