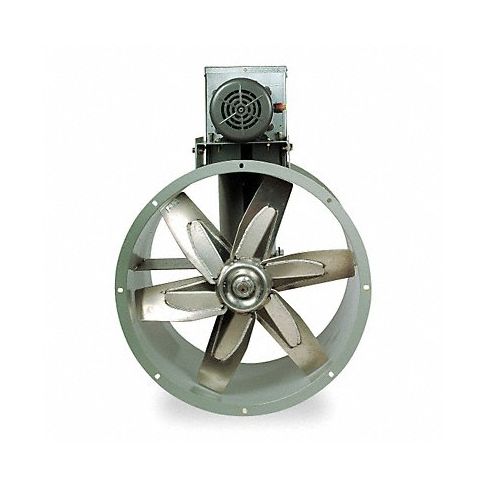

Steel 33.6 Dia 24 L 46.6 H Tubeaxial Fan MPN:7AF85
Steel axial fans boast large diameters for powerful performance capable of handling immense volumes of air circulation, constructed from robust materials that endure adverse conditions; their ability to resist corrosion safeguards against pollution damage while offering durable service across diverse industries. Tailored options include direct or belt driven motors tailored according to individual user needs providing exceptional flexibility when customizing performance. Suited specifically for applications requiring unyielding reliability; agricultural spaces, manufacturing environments as well as warehouses heavily invest in these sturdy machines owing to their potency to move substantial amounts of fresh outside air indoors throughout cold periods maintaining cozy interior atmospheres, keeping occupants secure and well ventilated with little energy consumption- making them integral components driving industrial processes continuously relied upon across multiple sectors.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 30 in
- CFM @ 0.000-In. SP 9825
- CFM @ 0.125-In. SP 9211
- CFM @ 0.250-In. SP 8519
- CFM @ 0.500-In. SP 6695
- Sones @ 0.250-In. SP @ 5 Ft. 28
- Motor HP 1
- Max. BHP 0.93
- Fan RPM 924
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 1
- Voltage 115/208-230
- Max. Motor Height 10 in
- Shaft Dia. 1-3/16 in
- Number of Blades 6
- Full Load Amps 10.0/5.3-5.0
- Motor Type Capacitor Start
- Max. Inlet Temp. 200 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Aluminum
- Hz 60
- Motor RPM 1725
- Height 46-5/8 in
- Width 33-5/8 in
- Max. Depth 24 in
- Housing Dia. w/Mtg. Flange 33-5/8 in
- Housing Dia. w/o Mtg. Flange 30-1/2 in
- Inlet Dia. 30 5/8 in
- Outlet Dia. 30 5/8 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 32-1/4 in
- Replacement Fan Blade Stock No. 3C418
- Companion Flange Stock No. 3C440
- Standards AMCA
- Includes Drive Package and Belt Guard
- Dimension A 33-5/8 in
- Dimension B 19-1/4 in
- Dimension C 30-1/2 in
- Dimension D 24 in
- Dimension E 7/16 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7AF85
- MPN: 7AF85
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414510010
- GDS Category Name: Tubeaxial Fans with Motor
- GDS Family Name: Tubeaxial Fans and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
