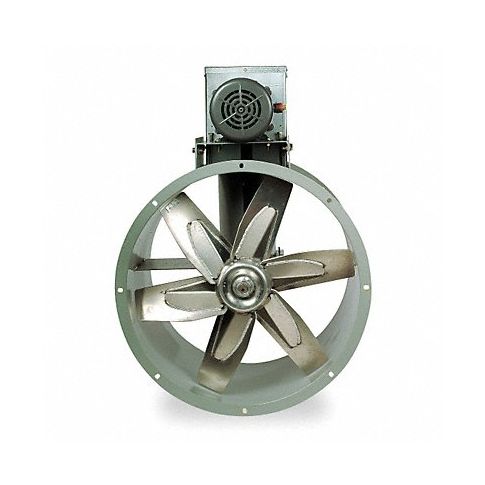

Steel 27 Dia 18 L 37.25 H Tubeaxial Fan MPN:7AF76
The Steel 27 Diameter x 18 Width x 37.25 Height Tubeaxial Fan is an ideal solution for commercial and industrial establishments seeking reliable ventilation systems designed to maintain optimal temperature control in vast areas. Its motor-driven design offers consistent temperature regulation tailored specifically for HVAC and refrigeration applications, providing efficient cooling or heating solutions perfect for various industries such as manufacturing plants, warehouses, storage facilities, distribution centers, and more. The durable steel construction guarantees longevity even under challenging conditions while delivering powerful airflow circulation capabilities essential in maintaining a stable temperature environment required by businesses for optimal functioning. Overall, this product offers an excellent choice for companies seeking a reliable, long-lasting ventilation system designed specifically to meet their needs in maintaining a stable temperature environment.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 24 in
- CFM @ 0.000-In. SP 7085
- CFM @ 0.125-In. SP 6742
- CFM @ 0.250-In. SP 6371
- CFM @ 0.500-In. SP 5484
- CFM @ 0.750-In. SP 3164
- Sones @ 0.250-In. SP @ 5 Ft. 34
- Motor HP 1
- Max. BHP 0.98
- Fan RPM 1312
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 3
- Voltage 208-230/460
- Max. Motor Height 10 in
- Shaft Dia. 1 in
- Number of Blades 6
- Full Load Amps 3.4-3.6/1.8
- Motor Type Hazardous Location, 3-Phase
- Max. Inlet Temp. 200 Degrees F
- Max. Ambient Temp. 104 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Aluminum
- Hz 60
- Motor RPM 1730
- Height 37-1/4 in
- Width 26-7/8 in
- Max. Depth 18 in
- Housing Dia. w/Mtg. Flange 27 in
- Housing Dia. w/o Mtg. Flange 24-5/16 in
- Inlet Dia. 24 7/16 in
- Outlet Dia. 24 7/16 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 25-3/4 in
- Replacement Fan Blade Stock No. 4C664
- Companion Flange Stock No. 3C436
- Standards AMCA
- Includes Drive Package and Belt Guard
- Dimension A 27 in
- Dimension B 16-3/4 in
- Dimension C 24-5/16 in
- Dimension D 18 in
- Dimension E 7/16 in
