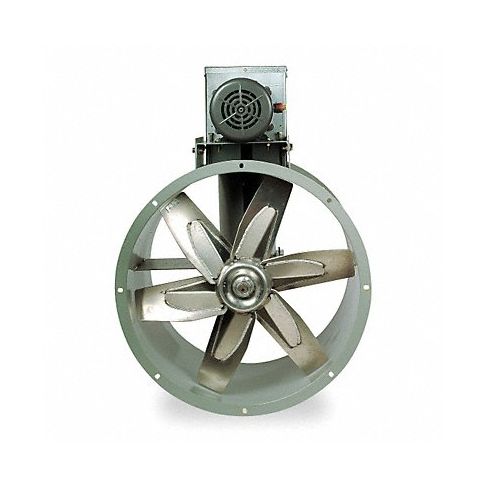

Steel 19 Dia 16.5 L 28.3 H Tubeaxial Fan MPN:7AF45

Belt-Drive Tubeaxial Fans

• Mount: vertical or horizontal Permanently lubricated ball bearings Max. inlet air temp.: 200°F Max. ambient: 104°F Precision-balanced, spark-resistant aluminum blades Belt guards AMCA Type B spark-resistant propellers (99-0401-86) Optional companion flanges are sold in pairs
Streamlined belt tunnel ventilates the drive compartment with air from outside the fan. Steel housing is iron phosphate-processed for rust protection; baked enamel paint finish. Factory installed cast-iron sheave is assembled on fan shaft. Motors and belts are packed separately when complete fan with drive package is ordered.
Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.

Technical Specifications

• Item Tubeaxial Fan with Motor and Drive Package
• Drive Type Belt-Drive
• Blade Dia. 16 in
• CFM @ 0.000-In. SP 3859
• CFM @ 0.125-In. SP 3720
• CFM @ 0.250-In. SP 3580
• CFM @ 0.500-In. SP 3238
• CFM @ 0.750-In. SP 2744
• CFM @ 1.000-In. SP 1892
• Sones @ 0.250-In. SP @ 5 Ft. 46
• Motor HP 1
• Max. BHP 1.00
• Fan RPM 2547
• Motor Enclosure Totally Enclosed Fan Cooled
• Phase 3
• Voltage 208-230/460
• Max. Motor Height 9 in
• Shaft Dia. 7/8 in
• Number of Blades 6
• Full Load Amps 3.1-2.8/1.4
• Motor Type 3-Phase
• Max. Inlet Temp. 200 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Bearing Type Ball
• Mounting Position Vertical/Horizontal
• Housing Material Steel
• Housing Finish Baked Enamel
• Blade Material Aluminum
• Hz 60
• Motor RPM 1740
• Height 28-5/16 in
• Width 18-1/2 in
• Max. Depth 16-1/2 in
• Housing Dia. w/Mtg. Flange 18-3/4 in
• Housing Dia. w/o Mtg. Flange 16-1/8 in
• Inlet Dia. 16 3/32 in
• Outlet Dia. 16 3/32 in
• Assembled/Unassembled Unassembled
• Bolt Circle Dia. 17-1/2 in
• Replacement Fan Blade Stock No. 4C663
• Companion Flange Stock No. 4C717
• Standards AMCA
• Includes Drive Package and Belt Guard
• Dimension A 18-3/4 in
• Dimension B 11-1/2 in
• Dimension C 16-1/8 in
• Dimension D 16-1/2 in
• Dimension E 5/16 in
