Alu 35.4 Dia 36.5 H Roof Fan w.Motor MPN:7A698
Alu 35.4 Dia 36.5 H Roof Fan w.Motor
The Alu 35.4 Dia 36.5 H Roof Fan w/Motor is a versatile industrial ventilation solution designed for heavy-duty use in various industries such as automotive, chemical, and manufacturing. It features an aluminum construction, customizable airflow options via large diameter, powerful motor, and 2-speed settings, and efficiently removes smoke, fumes, and heat from factories or workshops. Its key specifications include a size of 35.4 inches in diameter, a height of 36.5 inches, and a capacity of handling up to 19,200 pounds. This fan is ideal for industrial settings requiring efficient ventilation and temperature control.

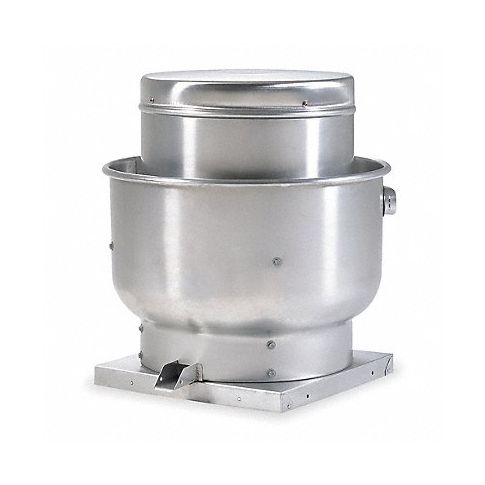

This centrifugal belt-drive upblast ventilator is designed for use in restaurants, schools, and commercial and industrial applications to exhaust contaminated air from kitchen range hoods up and away from the roof. Its 1-pc. rolled aluminum windband is fully welded to the base to create a virtually leakproof seal between the ventilator and the mounting surface. Internal steel support braces and a fully rolled windband dramatically increase the rigidity of the ventilator for greater stability during transport and installation. Motor, drive frame, and wheel are isolated from the mounting base by independent neoprene studs no metal-to-metal contact, greatly reducing overall noise. The motor compartment is isolated from the contaminated air stream and is cooled by outside air that is pulled in through an oversized breather tube by the spinning action of the wheel.
Technical Specifications
- Item Upblast Ventilator
- Drive Type - Roof Ventilators Belt Drive
- Drive Package With Motor Included Yes
- Base Size - Roof Ventilators 30 in x 30 in
- Duty Rating - Roof Ventilators Standard
- Voltage - Roof Ventilators 208 V AC/230 V AC/460 V AC
- Motor HP - Roof Ventilators 3/4
- Mounting Location - Roof Ventilators Roof
- Number of Speeds 1
- Wheel Dia. 18 1/2 in
- Item - Roof Ventilators Upblast Ventilator
- CFM @ 0.000-In. SP 4061
- CFM @ 0.125-In. SP 3919
- CFM @ 0.250-In. SP 3786
- CFM @ 0.375-In. SP 3666
- CFM @ 0.500-In. SP 3554
- CFM @ 0.625-In. SP 3345
- CFM @ 0.750-In. SP 3141
- CFM @ 0.875-In. SP 2926
- CFM @ 1.000-In. SP 2652
- Sones @ 0.125-In. SP @ 5 Ft. 16.2
- Sones @ 0.250-In. SP @ 5 Ft. 15.8
- Sones @ 0.500-In. SP @ 5 Ft. 15.5
- Assembled/Unassembled Unassembled
- Phase 3
- Hz 60
- Max. BHP 0.78
- RPM 1075
- Base Height 1-3/4 in
- Overall Dia. 35-3/8 in
- Shaft Dia. Wheel End 3/4 in
- Bearing Type Regreasable Pillow Block
- Overall Height 36 1/2 in
- Max. Inlet Temp. 300 Degrees
- Housing Material Spun Aluminum
- Wheel Material Aluminum
- Speed Controllable No
- Fixed UL 762 Kitchen Roof Curb Stock No. 4HX57
- Recommended 12 In. Fixed Curb Item No. 2RB79
- Recommended 8 In. Fixed Curb Item No. 4HX41
- Recommended Damper Size (In.) 23 x 23
- Recommended Damper Stock No. 4HX67
- Adj. 12 3/8"H Roof Curb Stock No. 2ZV83
- Adj. UL 762 Kitchen Roof Curb Stock No. 4HX62
- Requires Roof Curb For New Installation
- Includes NEMA 1 Junction Box, Drive Package
- Standards UL/cUL 762, AMCA Sound and Air
- Dimension A 30 in
- Dimension B 35-3/8 in
- Dimension C 34-3/4 in
- Dimension D 21 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7A698
- MPN: 7A698
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Upblast Roof Exhaust Fans with Motor
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
Category: Roof Ventilators
