Overload Relay 5.50 to 8A Class 10 3P MPN:6ECC2
SKU
226-CXO-6ECC2

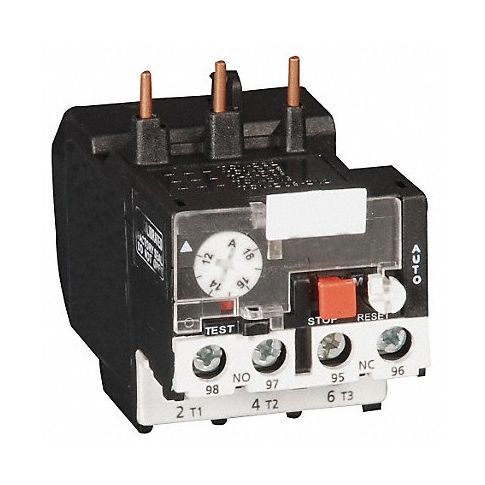

Overload Relay 5.50 to 8A Class 10 3P
Overload relay 5.50 to 8A class 10 3P is a reliable electrical device designed for professional trimmers seeking to protect their equipment from damage due to overload, overheating, or short circuits. With its compact size and ease of installation, it's suitable for a variety of applications in industries such as manufacturing, automotive or HVAC systems. Its high-quality thermal circuit breaker and adjustable trip setting ensure safety and reliability, while the built-in pilot lamp offers status indication. The versatile 3P control terminal makes it compatible with various load types, making this overload relay an essential component for engineers, maintenance teams, or facility managers in commercial spaces.
IEC Contactors, Motor Starters, and Overload RelaysOverload Relays• Bimetallic For 3-phase applications Compatible with Dayton® IEC contactorsFeature continuously readjustable current settings. Have temperature compensation, tripped indicator, test button, stop button, manual and automatic reset button, finger-safe terminals, and 1NO/1NC contacts.UL and C-UL Listed.
Technical Specifications
- Item - Relay IEC Style Overload Relay
- Use With - Contactors and Starters Dayton IEC Contactors 9 to 18 Amps
- Overload Relay Current Range 5.5 to 8.0A
- Trip Class - Overload 10
- Number of Poles 3
- Reset Type - Relay Auto, Manual
- Body Height - Relay 1.85 in
- Body Width - Relay 1.73 in
- Body Depth - Relay 3.62 in
- Overall Height - Relay 2.5 in
- Sensing Method Bimetallic
- Standards Coordinated Protection per IEC 60947-4-1, CSA, UL
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 6ECC2
- MPN: 6ECC2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8536304000
- GDS Category Name: IEC Overload Relays
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
