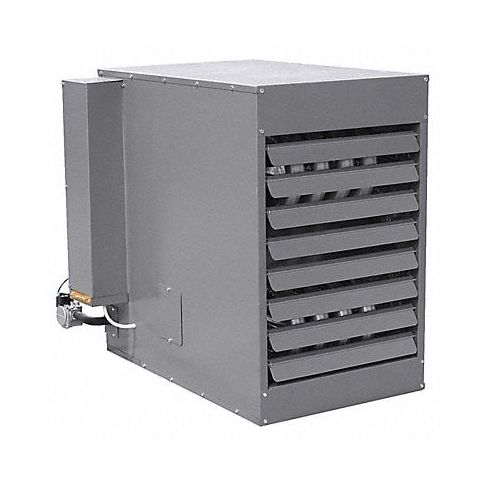

Stndrd-Profle Gas Unt Htr NG 3200cfm MPN:55FG70
Keep your warehouse, factory or workspace warm and comfortable with this powerful gas unit heater from Dayton! Designed to heat large spaces quickly and efficiently, it's ideal for use in warehouses, factories, or other commercial settings where you need reliable, portable heating. With a standard-profile design that saves floor space while maximizing heating capacity, this unit is easy to install and can be adjusted to provide focused heat wherever it's needed. Featuring field convertible combustion, this gas unit heater lets you choose between atmospheric or non-atmospheric burning, depending on your needs and setup. Plus, its durable steel construction ensures that it will stand up to years of use in demanding industrial settings. Whether you're heating a garage, shop or manufacturing space, this Dayton gas unit heater has the power and features you need to keep things warm and comfortable!
Top product features:
- Standard-profile design for maximum heating capacity in larger spaces
- Suspends from walls and ceilings to save floor space
- Field convertible combustion for versatile heating options
Top product applications:
- Warehouses and factories that require portable heat sources for large areas
- Industrial or commercial spaces where additional heating is needed but floor space is limited
- Temporary or outdoor events that need short-term, high capacity heating solutions
Technical Specifications
- Product Type Standard-Profile Unit Heater
- Fuel Type Natural Gas
- Combustion Type Field Convertible
- Heating Capacity Input 200,000 BtuH
- Heating Capacity Output 166,000 BtuH
- Fan Type Propeller
- Thermal Efficiency Rating 83%
- Flue Diameter 5 in
- Overall Height 33 3/4 in
- Overall Width 37 1/4 in
- Overall Depth 43 1/2 in
- Air Flow 3,200 cfm
- Air Flow Direction Horizontal
- Air Temperature Rise 47 Degrees F
- Burner Air Inlet Size 5 in
- Drive Type Direct
- Fan Diameter 18 in
- Frequency 60 Hz
- Gas Connection Size 1/2 in
- Gas Connection Type NPT, Male
- Heat Exchanger Gauge 20 ga
- Heat Exchanger Material Aluminized Steel
- Heat Output 166,000 BtuH
- Heater Voltage 115 V AC
- Heating Method Fan Forced
- Ignition Type Direct Spark
- Indoor Air Discharge Height 24 1/2 in
- Indoor Air Discharge Width 30 3/4 in
- Maximum Amperage 8 A
- Motor Speed 1,050 RPM
- Motor Type PSC
- Mounting Height 8 ft to 20 ft
- Mounting Hole Diameter 3/4 in
- Mounting Location Ceiling
- Mounting Type Suspended
- Off Center Mounting 30 5/8 in
- Phase 1
- Profile Type Standard
- Vent Type Power
- Thermostat Included No
- Features Power Vented Propeller Style Commercial Tubular Unit Heater Suitable For Standard or Separated Combustion Applications
- Includes Adjustable Louvers
- Manufacturers Warranty Length 10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
- Standards ETL, ETLc Certified
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 55FG70
- MPN: 55FG70
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 7322900000
- GDS Category Name: Gas Wall and Ceiling Unit Heaters
- GDS Family Name: Gas Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101805
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Furnaces
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
