Axial Fan Square 4-11/16 H 70/76 CFM MPN:4WT48
Axial Fan Square 4-11/16 H 70/76 CFM

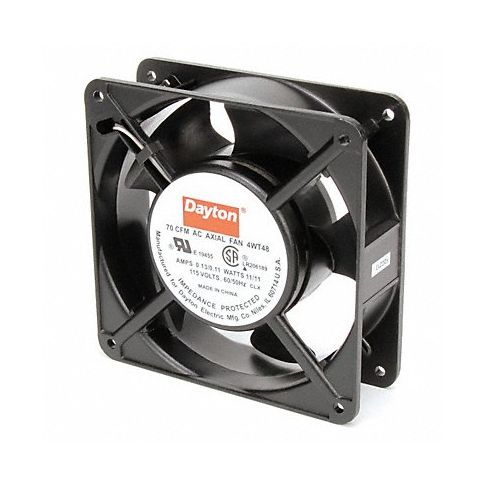

The Dayton square axial fan is the ideal solution for equipment cooling in enclosures. This versatile fan is designed to fit both round and square cutouts for easy installation. The square housing offers ample coverage for efficient cooling without requiring excessive space. Equipped with four mounting holes, these fans are easy to secure in place. With a high CFM rating of 70/76 and 4 11/16 inches height, these square axial fans offer exceptional performance in HVAC and refrigeration applications. Say goodbye to hot spots in your equipment enclosures and enjoy reliable cooling with the Dayton Square Axial Fan.
Top product features:
- Square housing for versatile installation
- High CFM rating for efficient cooling
- Four mounting holes for easy installation
Top product applications:
- Equipment cooling in enclosures
- Industrial settings
- HVAC and refrigeration systems
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
Technical Specifications
- Item Standard Square Axial Fan
- Fan Shape Square
- Mounting Eye O.C. 4 1/8 in
- Height 4 11/16 in
- Depth 1 1/2 in
- Width 4 11/16 in
- CFM @ 0.000-In. SP 70/76
- Watts 11/11
- Voltage 115V AC
- Hz 60/50
- Amps 0.13/0.11
- Electrical Connection - Fans Terminals
- Sound Level 36/38
- IP Rating IP20
- Mounting Position Horizontal
- Bearing Type Sleeve
- RPM 2200/2000
- Motor Design Shaded Pole
- Motor Insulation Class A
- Thermal Protection Impedance
- Max. Ambient Temp. 158 Degrees F
- Blade Material Polybutylene Terephthalate
- Housing Material Cast Aluminum
- Color Black
- Requires Cord Set (Not Included)
- Standards RU E19455 AND CSA LR206189
- Environmental Applications Equipment Cooling
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 4WT48
- MPN: 4WT48
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
