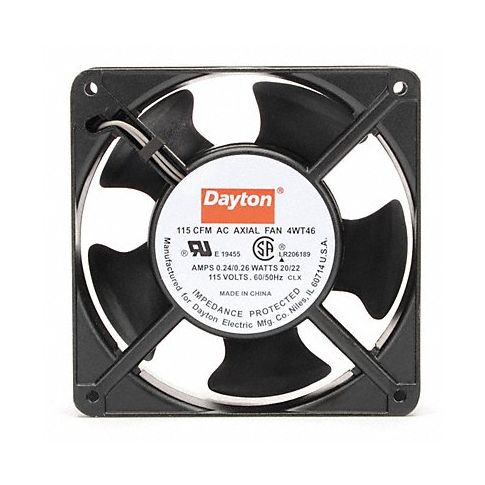

Axial Fan Square 4-11/16 H 115/95 CFM MPN:4WT46
Axial Fan Square 4-11/16 H 115/95 CFM
Keep your equipment cool and running efficiently with Dayton's Standard Square Axial Fan - ideal for dry locations in HVAC and refrigeration systems. This compact fan boasts a square housing that minimizes space requirements while maximizing cooling efficiency. With a height of 4-11/16 inches and an impressive CFM output, it's perfect for installations with full access to the interior of an enclosure. Its mounting holes at each corner provide secure installation against walls or panels, ensuring reliable performance. Invest in a Standard Square Axial Fan today and enjoy optimal temperature control for your equipment!
Top product features:
- Compact design for minimal space requirements
- Square housing fits into a square cutout for installation
- Mounting holes at each corner for secure installation
Top product applications:
- Cooling equipment in enclosures in HVAC and refrigeration systems
- Mounted against the interior of an enclosure where there's full access
- Use as a dry-location fan in various industrial applications
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
Technical Specifications
- Item Standard Square Axial Fan
- Fan Shape Square
- Mounting Eye O.C. 4 1/8 in
- Height 4 11/16 in
- Depth 1 1/2 in
- Width 4 11/16 in
- CFM @ 0.000-In. SP 115/95
- Watts 20/22
- Voltage 115V AC
- Hz 60/50
- Amps 0.24/0.26
- Electrical Connection - Fans Terminals
- Sound Level 49/44
- IP Rating IP20
- Mounting Position Horizontal
- Bearing Type Sleeve
- RPM 3100/2700
- Motor Design Shaded Pole
- Motor Insulation Class A
- Thermal Protection Impedance
- Max. Ambient Temp. 158 Degrees F
- Blade Material Polybutylene Terephthalate
- Housing Material Cast Aluminum
- Color Black
- Requires Cord Set (Not Included)
- Standards RU E19455 AND CSA LR206189
- Environmental Applications Equipment Cooling
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 4WT46
- MPN: 4WT46
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
