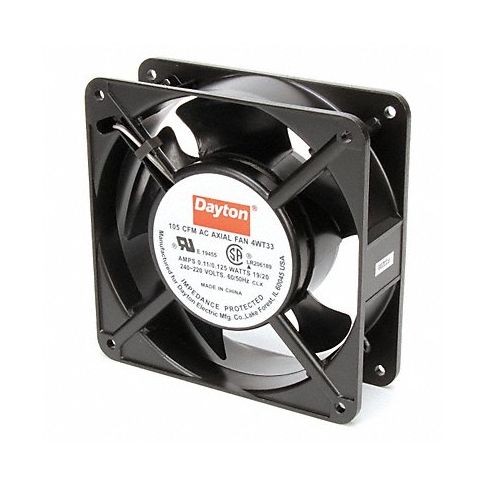

Axial Fan Square 4-11/16 H 105/85 CFM MPN:4WT33
Axial Fan Square 4-11/16 H 105/85 CFM
Our axial fan is the perfect solution for your cooling needs, providing powerful airflow and efficient circulation with a maximum noise level of just 47 decibels. With a size of 10.5 inches by 9.375 inches, this fan can easily fit into tight spaces while still delivering powerful performance, thanks to its energy-efficient motor and square design. Its housing is made from high-quality aluminum, ensuring durability and longevity, making it ideal for use in industrial, commercial, and residential settings. Whether you're looking to cool down a server room or simply want to improve the air circulation in your home, our axial fan has got you covered.
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
Technical Specifications
- Item Standard Square Axial Fan
- Fan Shape Square
- Mounting Eye O.C. 4 1/8 in
- Height 4 11/16 in
- Depth 1 1/2 in
- Width 4 11/16 in
- CFM @ 0.000-In. SP 105/85
- Watts 19/20
- Voltage 230V AC
- Hz 60/50
- Amps 0.11/0.12
- Electrical Connection - Fans Terminals
- Sound Level 48/43
- IP Rating IP20
- Mounting Position Horizontal
- Bearing Type Sleeve
- RPM 2900/2550
- Motor Design Shaded Pole
- Motor Insulation Class A
- Thermal Protection Impedance
- Max. Ambient Temp. 158 Degrees F
- Blade Material Polybutylene Terephthalate
- Housing Material Cast Aluminum
- Color Black
- Requires Cord Set (Not Included)
- Standards RU E19455 AND CSA LR206189
- Environmental Applications Equipment Cooling
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 4WT33
- MPN: 4WT33
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
Category: Cooling Fans and Air Circulators
