Sspnd Elct Wl/Ceil Heatr 16 H 240V MPN:4E169
Sspnd Elct Wl/Ceil Heatr 16 H 240V

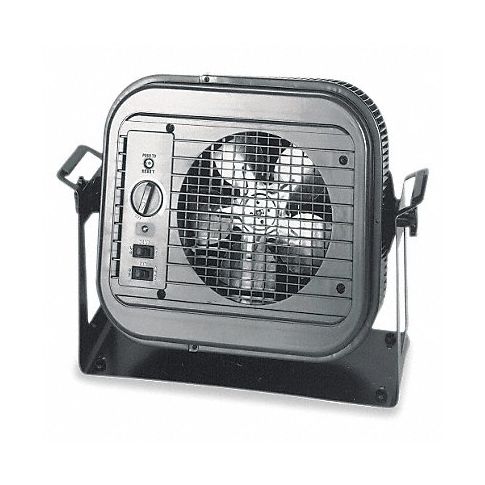

The Spnd Elct Wl/Ceil Heatr 16 H 240V from Dayton is a versatile electric unit heater designed for wall and ceiling suspension installations in downflow or horizontal orientations. Its compact size saves valuable floorspace while providing primary or supplementary heating in large and exposed areas such as factories, warehouses, and stock rooms. The forced air system utilizes a heating element and a fan to heat the surrounding air efficiently. With an overall height of 16 inches, width of 21 inches, depth of 8 inches, and an impressive air flow rate of 210 cfm, this heater is ideal for businesses looking for an energy-efficient way to maintain comfortable temperatures in their workspaces.
Top product features:
- Wall and ceiling suspension installation for versatile placement options
- High air flow rate of 210 cfm for efficient heating
- Compact size saves floorspace in large or exposed areas
Top product applications:
- Factories where large heating areas are required
- Warehouses needing supplementary heating in certain sections
- Stock rooms wanting to maintain comfortable temperatures for employees
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 16 in
- Overall Width 21 in
- Overall Depth 8 in
- Air Flow 210 cfm
- Air Temp. Rise 71 Degrees F
- Voltage 208/240V AC
- Phase 1
- Wattage Output 2.5kW/3.7kW, 3.3kW/5kW
- Heating Method Fan Forced
- Heating Capacity 11,372/17,065 BtuH, 8533/12,800
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 12 ft
- Frequency 60 Hz
- Amperage 12A/17.8A, 13.8A/20.8A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 240V AC
- Housing Color Gray
- Housing Finish Painted
- Housing Material Steel
- Vertical Floor Coverage 24 ft
- Vertical Mounting H 15 ft
- Requires Mounting Bracket and Control Included
- Includes Ceiling/Wall Mounting Bracket with Pre Drilled 16 in O.C. Holes, Doubles as Handle or Floor Stand
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL-CUL, Meets NEC and OSHA Requirements
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 4E169
- MPN: 4E169
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290030
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
