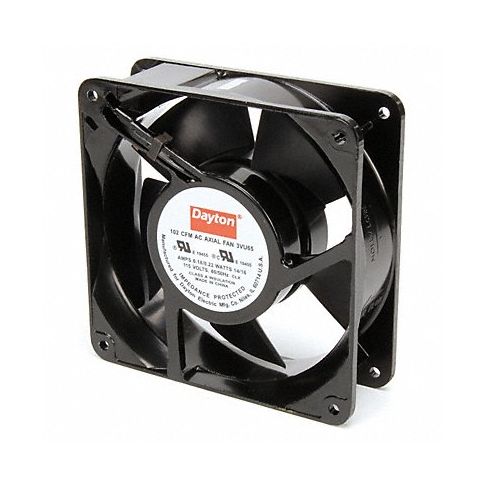

Axial Fan Square 4-11/16 H 102/92 CFM MPN:3VU65
SKU
226-CXO-3VU65
Axial Fan Square 4-11/16 H 102/92 CFM
Introducing our Square Axial Fan - the perfect solution for cooling equipment within an enclosure! With a compact square design and minimal space requirements, this fan can span a round cutout or fit into a square cutout for easy installation. Standard in dry locations, these equipment-cooling fans have mounting holes at each corner for securing them to a wall or panel. The square housing and advanced engineering provide optimum airflow while minimizing energy consumption. This fan is ideal for a wide range of applications including HVAC systems, electronic enclosures, and refrigeration units. Upgrade your equipment cooling today with our reliable Square Axial Fan!
Top product features:
- Compact square design for easy installation
- Mounting holes at each corner for secure attachment
- Square housing provides optimum airflow
Top product applications:
- Industrial cooling systems
- Electronic enclosures cooling
- Commercial refrigeration units
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. These equipment-cooling fans require minimal space for installation and are typically installed where there's full access for mounting them against the interior of an enclosure. They have mounting holes at each corner for securing them to a wall or panel.
Technical Specifications
- Item Standard Square Axial Fan
- Fan Shape Square
- Mounting Eye O.C. 4 1/8 in
- Height 4 11/16 in
- Depth 1 1/2 in
- Width 4 11/16 in
- CFM @ 0.000-In. SP 102/92
- Watts 14/16
- Voltage 115V AC
- Hz 60/50
- Amps 0.18/0.22
- Electrical Connection - Fans Terminals
- Sound Level 48/45
- IP Rating IP20
- Mounting Position Vertical or Horizontal
- Bearing Type Ball
- RPM 3000/2600
- Motor Design Shaded Pole
- Motor Insulation Class A
- Thermal Protection Impedance
- Max. Ambient Temp. 158 Degrees F
- Blade Material Polybutylene Terephthalate
- Housing Material Cast Aluminum
- Color Black
- Requires Cord Set (Not Included)
- Standards RoHS Compliant, UL Recognized
- Environmental Applications Equipment Cooling
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3VU65
- MPN: 3VU65
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
