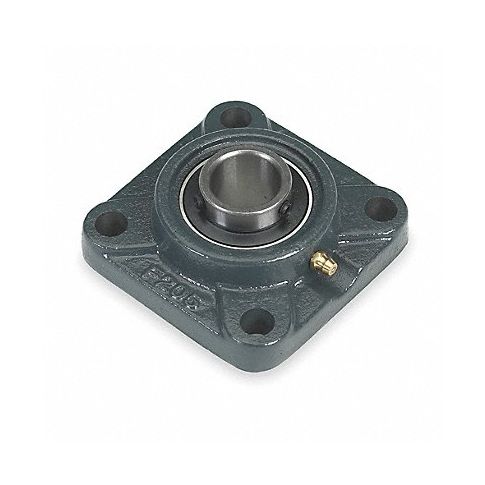

4 Bolt Flange Bearing Ball 3/4in Bore MPN:3FDE4
The Premium Quality 4 Bolt Flange bearing, ball bore is an industrial-grade bearing designed for high performance, precision, and reliability across a range of machining operations and applications. Its robust construction offers superb load capacities to provide smooth movement and reduced noise while running at high speeds thus providing cost efficiency benefits. With its corrosion-resistant stainless steel design ensures that it can be used in various environments without wear or corrosion even when exposed to water or harsh chemicals, making this ball bearing perfect for food processing equipment as well as other heavy-duty applications such as packaging machinery, textile equipment, agricultural machinery, paper mills, and automotive manufacturing processes.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 1/2 in
- Series Nickel Plated Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 5/16 in
- Overall Width 3 3/8 in
- Overall Length 3 3/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
- Dimension A 3 3/8 in
- Dimension C 2 1/2 in
- Dimension D 15/32 in
- Dimension F 1 19/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDE4
- MPN: 3FDE4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
