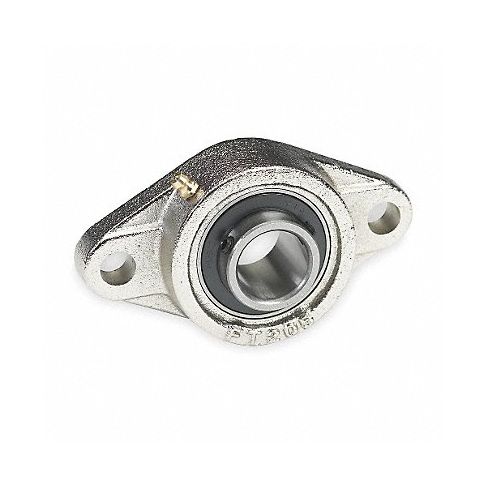

2 Bolt Flange Bearing Ball 5/8in Bore MPN:3FDD9

Technical Specifications

• Item 2-Bolt Flange Bearing
• Mounted Bearing Item 2-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 5/8 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 3 17/32 in
• Series Nickel Plated Standard Duty
• Bolt Size 3/8 in
• Overall Height 1 9/32 in
• Overall Width 2 3/8 in
• Overall Length 4 13/32 in
• Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
• Dynamic Load Capacity 2,146 lb
• Static Load Capacity 1,074 lb
• Temp. Range -20 Degrees to 200 Degrees F
• Finish Nickel Plated
• Includes (2) Set Screws, Oiler Cap
• Dimension A 4 13/32 in
• Dimension B 2 15/64 in
• Dimension C 3 17/32 in
• Dimension D 13/32 in
• Dimension F 1 9/32 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3FDD9
• MPN: 3FDD9

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
