Pillow Block Bearing 1 in Bore Cast Iron MPN:3FDD7

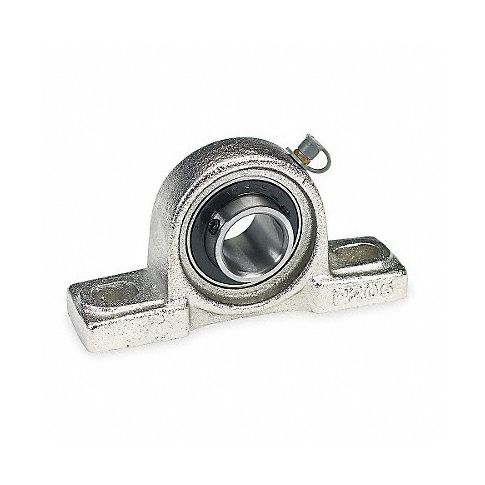

Pillow Block Bearing 1 in Bore Cast Iron
The pillow block bearing with a bore of 1 inch is an excellent solution for applications requiring heavy loads while ensuring smooth operation in harsh environments; constructed from cast iron, it offers durability to withstand impact loading or high vibration situations, delivering precise alignment that prevent misalignment due to excessive play enabling users to adhere to strict assembly guidelines. The sturdy housing provides an excellent option for industries such as agriculture, construction, and machine tools requiring reliable performance across various challenging situations resulting in cost-effective measures through reduced downtime while delivering consistent performance.
Buy Dayton item #3FDD7 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Bolt Hole Center-to-Center 4 1/8 in
- Mounting Surface to Shaft Center 1 7/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Nickel Plated Standard Duty
- Number of Bolts 2
- Bolt Size 3/8 in
- Overall Height 2 3/4 in
- Overall Width 1 1/2 in
- Overall Length 5 1/2 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 3,146 lb
- Static Load Capacity 1,771 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDD7
- MPN: 3FDD7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
