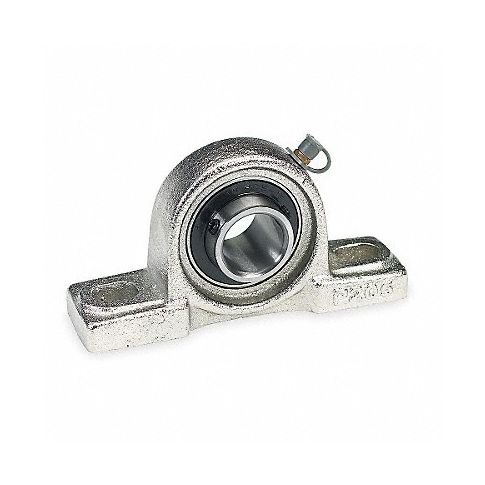

Pillow Block Brg 5/8 in Bore Cast Iron MPN:3FDD5
Pillow block Brg 5/8 bore cast iron exhibits several key characteristics, such as being easy to install with preload capability or adjustment while minimizing disturbance to the assembly by design; it offers high-load bearability with enhanced strength when handling heavy workloads in addition to providing self-lubrication through grooves ensuring a low noise operation during prolonged use without causing wear out to components. Additionally, the sealing feature secures protection against contamination, corrosion or dust entry overtime leading it to have applications within demanding industries like power transmission in utility trucks or machinery at large industrial plants; these bearings are vital as means to support various parts during motion with an affordable yet efficient way.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 5/8 in
- Bolt Hole Center-to-Center 3 3/4 in
- Mounting Surface to Shaft Center 1 3/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Nickel Plated Standard Duty
- Number of Bolts 2
- Bolt Size 3/8 in
- Overall Height 2 31/64 in
- Overall Width 1 1/2 in
- Overall Length 5
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,146 lb
- Static Load Capacity 1,074 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Nickel Plated
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDD5
- MPN: 3FDD5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
