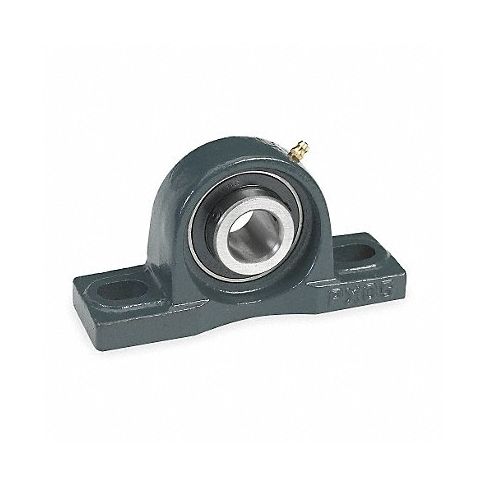

Pillow Block Brg 2 3/16in Bore Cast Iron MPN:3FDD2
Pillow Block Brg 2 3/16in Bore Cast Iron
Our pillow block bearing with a 2-3/16 inches bore size offers superior precision motion control in applications that require support in limited clearance spaces. Its cast iron construction ensures durability for all-around use while being cost-effective and easy to install on machinery or heavy equipment. The bearing is well suited for industries such as construction, agriculture, and manufacturing where rapid installation with high performance standards are necessary. By investing in our pillow block bearing, users can optimize the functionality of power tools and accessories while ensuring long-lasting reliability and reduced maintenance costs.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Dayton item #3FDD2.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 3/16 in
- Bolt Hole Center-to-Center 7 1/4 in
- Mounting Surface to Shaft Center 2 3/4 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Medium Duty
- Number of Bolts 2
- Bolt Size 3/4 in
- Overall Height 5 15/32 in
- Overall Width 3 1/8 in
- Overall Length 10 1/4 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 10,742 lb
- Static Load Capacity 7,371 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDD2
- MPN: 3FDD2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
Category: Bearings
