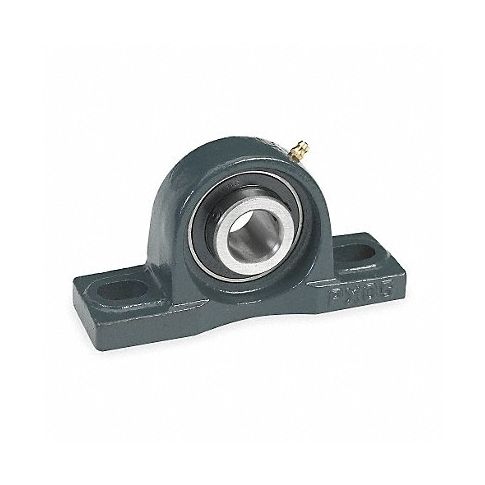

Pillow Block Brg 1 11/16in Bore Cst Iron MPN:3FDC7
Pillow Block Brg 1 11/16in Bore Cst Iron
PiyVision's pillow block bearing is an ideal low-cost option suited for power transmission and industrial machinery requiring heavy-duty support crafted from cast iron with a non-rust painted finish, the one-piece housing eliminates shaft rotation preventing deflection under heavier loads ensuring smooth operation. Perfect fit for agricultural or construction equipment operating in harsh environments like mining sites where reliable performance is critical without breaking the bank on costly alternatives backed by a one-year warranty against manufacturer defects guaranteeing exceptional quality and durability.
Buy Dayton item #3FDC7 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 11/16 in
- Bolt Hole Center-to-Center 6 5/32 in
- Mounting Surface to Shaft Center 2 5/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Medium Duty
- Number of Bolts 2
- Bolt Size 5/8 in
- Overall Height 4 9/16 in
- Overall Width 2 5/8 in
- Overall Length 8 3/4 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 7,888 lb
- Static Load Capacity 5,213 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDC7
- MPN: 3FDC7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
