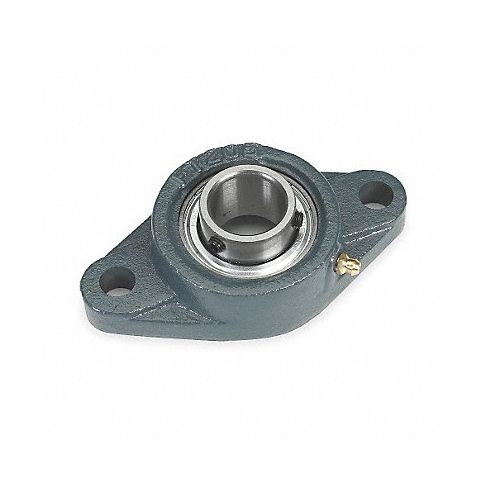

2 Bolt Flange Bearing Ball 1 3/16in Bore MPN:3FDC2
The 2 bolt flange bearing ball from Titan USA is an ideal power tool accessory for professional users working with applications that require steady and smooth rotation. With a bore diameter of 1 3/16 inches, this bearing ball is suitable for use with various power tools such as lathes, mills and grinders, allowing for increased efficiency and precision when completing intricate projects. The 2 bolt flange design provides added stability and support ensuring the bearing ball remains securely fastened to the tool or machine during operation. This bearing ball is made from high quality materials, providing durability and resistance to wear and tear. Its compact size and ease of installation make it a versatile accessory for professionals in various industries such as metalworking, woodworking, and machining. With its robust construction and reliable performance, the 2 bolt flange bearing ball from Titan USA is an essential power tool accessory for professional users who require accurate and steady rotation in their work.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 19/32 in
- Series Air Handling Standard Duty
- Bolt Size 7/16 in
- Overall Height 1 37/64 in
- Overall Width 3 1/4 in
- Overall Length 5 9/16 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 4,382 lb
- Static Load Capacity 2,517 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 5 9/16 in
- Dimension B 3 1/4 in
- Dimension C 4 19/32 in
- Dimension D 1/2 in
- Dimension F 1 37/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDC2
- MPN: 3FDC2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
