2 Bolt Flange Bearing Ball 3/4in Bore MPN:3FDA8

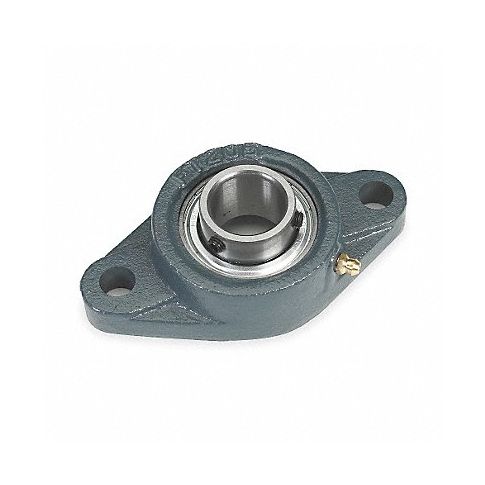

2 Bolt Flange Bearing Ball 3/4in Bore
The 2 Bolt Flange Bearing Ball is commonly used by industries such as automotive manufacturing and machine shops, where precision and reliability are essential for their operations. Its self-lubricating properties make it durable over prolonged use, ensuring that customers get the most out of this product. Additionally, its flanged design provides stability during use, while its small size and lightweight make it easy to incorporate into new or existing machinery. This versatile bearing is perfect for various power tools that require low-noise, high-precision rotational motion.
Buy Dayton item #3FDA8 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series Air Handling Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 9/32 in
- Overall Width 2 3/8 in
- Overall Length 4 13/32 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 4 13/32 in
- Dimension B 2 15/64 in
- Dimension C 3 17/32 in
- Dimension D 13/32 in
- Dimension F 1 9/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDA8
- MPN: 3FDA8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B07DPHYYG4, B007I9WRG6, B00HY1DL2M
Product info last updated on January 24, 2024 5:19pm UTC Category: Bearings
