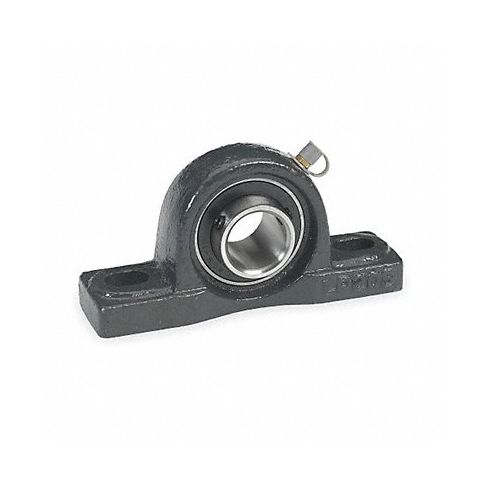

Pillow Block Bearing 1 in Bore Cast Iron MPN:3FDA5
Pillow Block Bearing 1 in Bore Cast Iron
The pillow block bearing with a bore of 1 inch is constructed from cast iron for durable support that can handle heavy loads in diverse environments such as agriculture, construction, and machine tools; the self-lubricating design reduces wear on bearings while maintaining precise alignment resulting in smooth operation perfect for impact loading or high vibration situations. Its sturdy cast iron housing provides an excellent option to tackle challenging situations requiring reliable performance while its precision tolerance prevents misalignment that can occur due to excessive play, allowing users to maintain strict assembly guidelines.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Dayton item #3FDA5.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Bolt Hole Center-to-Center 4 1/8 in
- Mounting Surface to Shaft Center 1 7/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Air Handling Standard Duty
- Number of Bolts 2
- Bolt Size 3/8 in
- Overall Height 2 3/4 in
- Overall Width 1 1/2 in
- Overall Length 5 1/2 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 3,146 lb
- Static Load Capacity 1,771 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FDA5
- MPN: 3FDA5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:36am UTC
