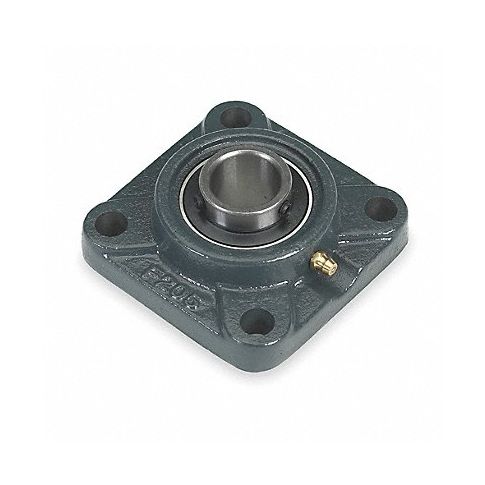

4 Bolt Flange Bearing Ball 3/4in Bore MPN:3FCX2
Introducing the 4 Bolt Flange Bearing Ball from Dayton - the perfect solution for power transmission systems requiring precision guidance and support! This robust bearing features a versatile 3/4 inch bore size that's ideal for space-constrained environments. Constructed from high-quality materials, it provides a sturdy yet flexible housing to accommodate heavy loads without compromising on accuracy. With a convenient set screw locking system, installation and maintenance are hassle-free. Backed by the quality standards of Dayton, this 4 Bolt Flange Bearing Ball offers unmatched performance and durability for a wide range of applications, including machinery, conveyor systems, and other industrial uses. Upgrade your power transmission system with confidence - choose the Dayton 4 Bolt Flange Bearing Ball today!
Top product features:
- Ball bearing insert for precision guidance
- Versatile 3/4 inch bore size
- Sturdy and flexible housing for heavy loads
Top product applications:
- Power transmission systems for heavy-duty machinery
- Material handling equipment such as conveyors
- Automated manufacturing and assembly lines
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 1/2 in
- Series Standard Duty
- Bolt Size 3/8 in
- Overall Height 1 5/16 in
- Overall Width 3 3/8 in
- Overall Length 3 3/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 3 3/8 in
- Dimension C 2 1/2 in
- Dimension D 15/32 in
- Dimension F 1 19/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCX2
- MPN: 3FCX2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
