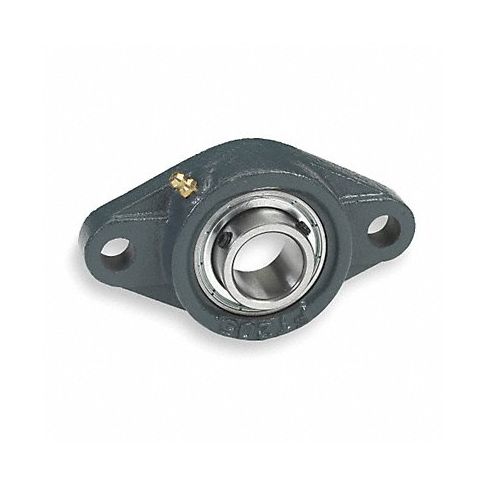

2 Bolt Flng Brg Ball 1 15/16in Bore MPN:3FCW3

Technical Specifications

• Item 2-Bolt Flange Bearing
• Mounted Bearing Item 2-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 1 15/16 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 6 3/16 in
• Series Standard Duty
• Bolt Size 9/16 in
• Overall Height 2 5/32 in
• Overall Width 4 9/16 in
• Overall Length 7 7/16 in
• Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
• Dynamic Load Capacity 7,888 lb
• Static Load Capacity 5,213 lb
• Temp. Range -20 Degrees to 200 Degrees F
• Finish Painted
• Includes (2) Set Screws, Oiler Cap
• Dimension A 7/16 in
• Dimension B 4 9/16 in
• Dimension C 6 3/16 in
• Dimension D 5/8 in
• Dimension F 2 5/32 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3FCW3
• MPN: 3FCW3

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483204040
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171504
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Ball bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
