2 Bolt Flange Bearing Ball 1 1/2in Bore MPN:3FCV9
SKU
226-CXO-3FCV9

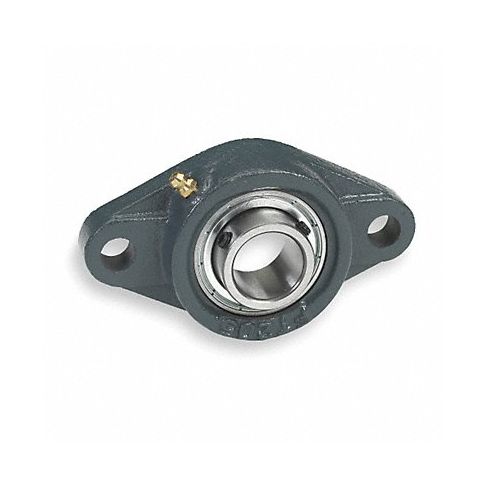

2 Bolt Flange Bearing Ball 1 1/2in Bore
This ball bearing is ideal for power tool equipment that requires smooth, low-friction rotation to operate at optimal levels with minimal noise and vibration disruptions in the production process such as saws or grinders where reliability, performance and durability is key, this double bolt flange type has extra stability under high load capacity bearings where movement need to be precise maintaining alignment perfect for woodworking or automotive equipment where speed, accuracy and smoothness matter.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Dayton item #3FCV9.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series Standard Duty
- Bolt Size 1/2 in
- Overall Height 2 1/64 in
- Overall Width 4 1/8 in
- Overall Length 6 5/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 6,652 lb
- Static Load Capacity 4,090 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 6 in
- Dimension B 6 5/8 in
- Dimension C 5 21/32 in
- Dimension D 35/64 in
- Dimension F 2 1/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCV9
- MPN: 3FCV9
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007I9WRG6, B001QRL0OQ, B07D2DYHD6
Product info last updated on January 24, 2024 5:19pm UTC Category: Bearings
