Pillow Block Brg 3/4 in Bore Cast Iron MPN:3FCP2
SKU
226-CXO-3FCP2

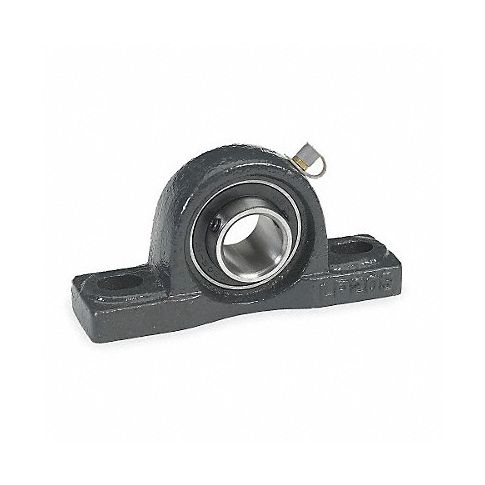

Pillow Block Brg 3/4 in Bore Cast Iron
The Pillow Block Bearing from Dayton is the perfect choice for any application requiring easy and quick installation. This Pillow Block Bearing has a 3/4 inch bore diameter and comes with mounting surfaces that are designed to offer secure and reliable support. The ball insert type ensures smooth movement, while the 3 3/4-inch bolt hole center-to-center distance allows for easy alignment. Whether you're in the automotive, agricultural or industrial sector, this Pillow Block Bearing is sure to meet your needs and provide lasting value. Choose Dayton for quality and reliability that will exceed expectations!
Top product features:
- Pillow Block Bearing insert type
- Secure mounting surfaces
- Bolt hole center-to-center distance
Top product applications:
- Pillow Block Bearings are used in automotive applications as a wear compensator to provide flexible support while absorbing vibrations from the road.
- Pillow Block Bearings can be installed in agricultural machinery like tractors, combines, or sprayers for reducing vibration and noise, thus improving user comfort and machine life.
- In industrial settings, Pillow Block Bearings are often used to support heavy loads in machines or equipment with misalignments or parallel shafts where traditional bearings cannot accommodate the required amount of angular misalignment or parallel offsets.
Buy Dayton item #3FCP2 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Bolt Hole Center-to-Center 3 3/4 in
- Mounting Surface to Shaft Center 1 5/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series Standard Duty
- Number of Bolts 2
- Bolt Size 3/8 in
- Overall Height 2 31/64 in
- Overall Width 1 1/2 in
- Overall Length 5
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCP2
- MPN: 3FCP2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8483208040
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0C61D8RGY, B0BTNCJV47, B01IWGLAM0
Product info last updated on November 3, 2023 11:47pm UTC Category: Bearings
