2 Bolt Flange Bearing Ball 3/4in Bore MPN:3FCN4
SKU
226-CXO-3FCN4

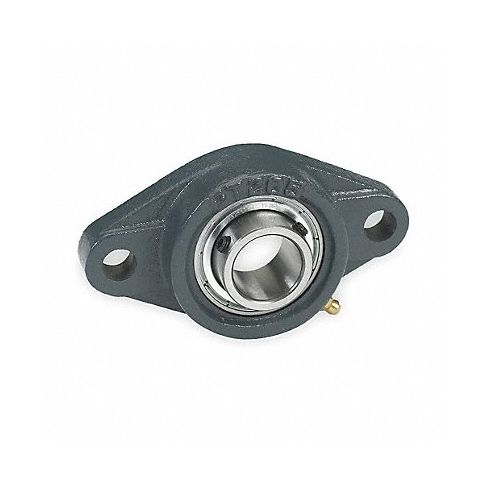

2 Bolt Flange Bearing Ball 3/4in Bore
Typical customers who could use 2 Bolt Flange Bearing Ball include industries like automotive manufacturing or machine shops where precision and reliable rotation is needed for a wide array of power tools. With a bore diameter of 3/4 inch, this bearing is versatile enough to accommodate various shaft sizes efficiently. The flanged design adds stability while the self-lubricating properties make it durable over prolonged use. Measuring approximately 2 inches in diameter and about an inch thick with a weight of just under half a pound, this bearings' small size and relatively lightweight makes it easy to incorporate into existing or new machinery.
Buy Dayton item #3FCN4 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 17/32 in
- Series Light Duty
- Bolt Size 3/8 in
- Overall Height 1 3/8 in
- Overall Width 2 3/8 in
- Overall Length 4 7/16 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,876 lb
- Static Load Capacity 1,493 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 4 11/32 in
- Dimension B 2 15/64 in
- Dimension C 3 17/32 in
- Dimension D 13/32 in
- Dimension F 1 19/64 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCN4
- MPN: 3FCN4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007I9WRG6, B001QRH5W2, B07D2CZCZ4
Product info last updated on January 24, 2024 5:19pm UTC Category: Bearings
