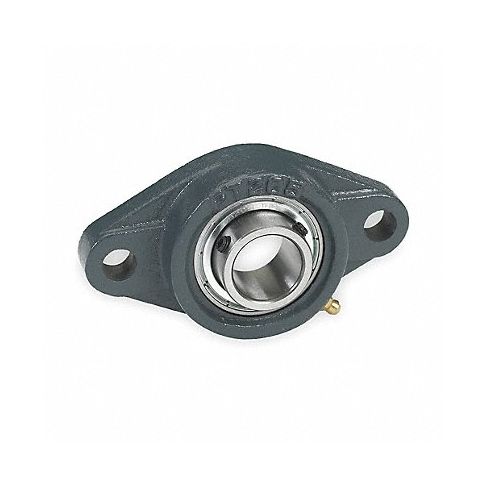

2 Bolt Flange Bearing Ball 5/8in Bore MPN:3FCN3
The 2 Bolt Flange Bearing Ball 5/8in Bore is an industry-standard ball bearing with exceptional precision, durability and load capacity for efficient power transmission in demanding industrial applications. Made of high-quality stainless steel, it resists corrosion and wear, providing reliable performance under extreme conditions such as high temperatures, chemical exposure or heavy loads. Its versatility makes it suitable for use in various industries like automotive, agricultural machinery, construction equipment and manufacturing plants where precise motion control and robust components are essential. This bearing's ease of installation and consistent performance make it popular among professionals who demand efficient operation on the job site or production line.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 5/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 in
- Series Light Duty
- Bolt Size 3/8 in
- Overall Height 1 9/64 in
- Overall Width 2 1/8 in
- Overall Length 3 7/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,146 lb
- Static Load Capacity 1,074 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 3 29/32 in
- Dimension B 2 1/8 in
- Dimension C 3 in
- Dimension D 27/64 in
- Dimension F 1 5/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCN3
- MPN: 3FCN3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 5:19pm UTC Category: Bearings
