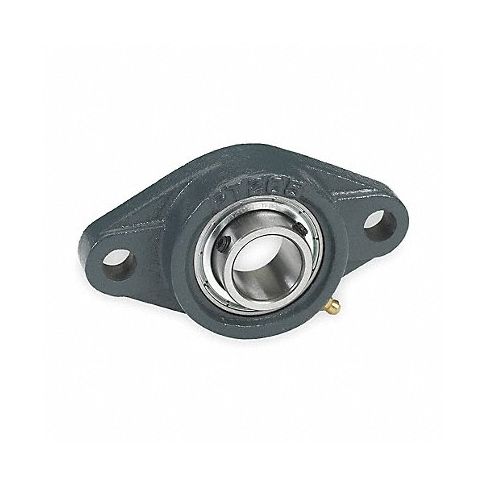

2 Bolt Flange Bearing Ball 1/2in Bore MPN:3FCN2
As a ball bearing in many industries that requires precision movements under rough conditions such as the Automotive industry where it can be found mounted on steering systems, pumps or engines improving their efficiency reducing friction to increase durability or even noise reduction; this 1/2inch bore size accommodates small shaft sizes perfect for applications which need accurate rotation and low energy consumption. This bearing is also used in Aerospace where reliability, stability under extreme conditions and accuracy is vital, this bearing could work as a guidance system improving efficiency on aerial machinery or as components in jet engine parts ensuring operation at peak capacity at high altitudes. Being part of precision equipment that relies on bearings such as this it could improve the overall functioning of assemblies making every component count crucial in mission critical environments, keeping in mind that with a reliable bearing every task can be achieved accurately saving resources and time which translates into savings to the industries reliant on these applications.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 in
- Series Light Duty
- Bolt Size 3/8 in
- Overall Height 1 9/64 in
- Overall Width 2 1/8 in
- Overall Length 3 7/8 in
- Bearing Lubrication Chevron SRI-2 or NLGI #2 Equivalent
- Dynamic Load Capacity 2,146 lb
- Static Load Capacity 1,074 lb
- Temp. Range -20 Degrees to 200 Degrees F
- Finish Painted
- Includes (2) Set Screws, Oiler Cap
- Dimension A 3 29/32 in
- Dimension B 2 1/8 in
- Dimension C 3 in
- Dimension D 27/64 in
- Dimension F 1 5/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3FCN2
- MPN: 3FCN2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 24, 2024 5:19pm UTC Category: Bearings
