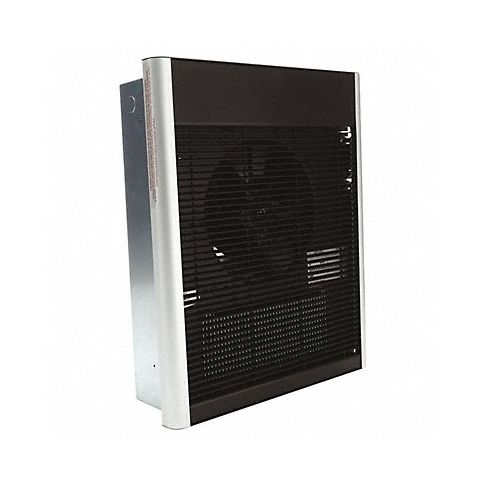

Lg Recssd Elct Wl Heatr 18-1/4 H 208V MPN:3END9

Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.

Technical Specifications

• Item Recessed Electric Wall-Mount Heater
• Rough-In Height 18 1/4 in
• Rough-In Width 14 1/4 in
• Rough-In Depth 3 7/8 in
• Voltage 208V AC
• Phase 1
• Thermostat Included Tamper-Resistant Unit-Mounted
• Wattage Output 4,800W
• Control Type Mechanical Selector Dial
• Programming Capability Not Programmable
• Smart Connectivity No Connectivity
• Tamper Resistant Yes
• Thermal Overheat Protection Manual Reset
• Thermostat Contact Type Double Pole
• Occupancy Sensor No
• Hold Function No
• Automatic Fan Delay (On/Off) Yes
• Building Management System Compatible Yes
• Disconnect Switch Yes
• Fan Only Operation No
• Key Features Mechanical Controls, Overheat Protection, Tamper Resistant
• Mounting Type Surface and Recessed
• Setback Control No
• Remote Control Functions No Remote Control Included
• Heating Capacity 16,382 BtuH
• Heating Method Fan Forced
• Housing Depth 3 7/8 in
• Housing Height 18 1/4 in
• Housing Width 14 5/16 in
• Housing Material Steel
• Grille Depth 1 1/2 in
• Grille Height 19 3/16 in
• Grille Width 15 3/4 in
• Grille Color Bronze
• Grille Finish Enamel
• Grille Material Steel
• Filter Included No
• Wattage Field Convertible No
• Air Flow 100 cfm
• Air Temp. Rise 126 Degrees F
• Amperage 23.1A
• Frequency 60 Hz
• Heater Mounting Position Horizontal Burn
• Minimum Mounting Distance from Ceiling 36 in
• Minimum Mounting Height from Floor 8 in
• Manufacturers Warranty Length 1 yr
• Includes Built-in Thermal Cutout, Fan Delay Switch
• Standards ETL Listed, cETL Listed
• Nominal Voltage - HVAC 208V AC

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3END9
• MPN: 3END9

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8516290090
• GDS Category Name: Electric Wall Recessed-Mount Heaters
• GDS Family Name: Electric Heaters and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101814
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Heating equipment and parts and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Finned tubular heaters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
