Dust Collector Single Stage MPN:3AA28
SKU
226-cxo-3aa28

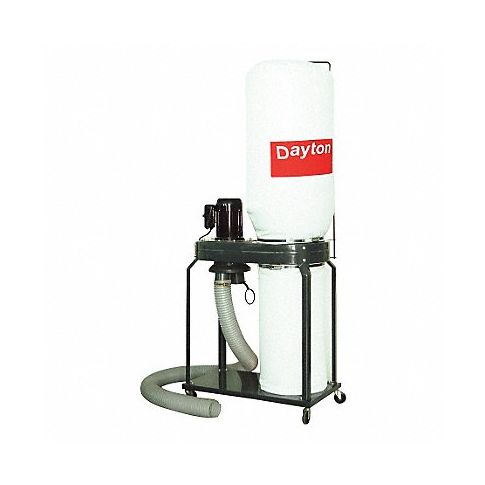

Dust Collector Single Stage
Introducing our Single Stage Dust Collector - a reliable, portable solution for clean air at your workspace! This powerful unit features a convenient bag support assembly that makes emptying quick and easy, perfect for both small shops and larger spaces. Ideal for collecting woodworking, metalworking, or foundry dust, it effectively removes hazardous particles from the air to protect both you and your equipment. Equipped with a robust filter that captures particles as small as 2 microns, it also has an optional remote switch and manual filter-shake cleaning feature for added convenience. Take control of your shop's air quality and improve productivity with our Single Stage Dust Collector - designed to handle the toughest applications!
Top product features:
- Mobile: allows for easy movement around the workspace
- Max. Flow (CFM) of 1,100: provides powerful airflow for efficient dust collection
- Optional remote switch and manual filter-shake cleaning feature: improves convenience and maintenance
Top product applications:
- Woodworking shop for cutting and sanding wood
- Metalworking shop for grinding and polishing metals
- Foundry for collecting dust from molding and casting processes
Portable unit features bag support assembly. Collector is not suitable for aluminum or other reactive dust, or for hot metal dust.
Technical Specifications
- Item Dust Collector
- Type Single Stage Mobile
- Max. Flow (CFM) 1,100
- Operating Velocity Range (FPM) 6,900
- Static Pressure Range (In.) 0.55 to 6.6
- HP 1 1/2 hp
- Voltage 115/230
- Hz 60
- Phase 1
- Amps AC 16
- Chip Capacity (Microns) 30
- Drum Capacity (Gal.) 30
- Hose Dia. (In.) 4 in
- dBA 86
- Filter Bag 30 micron
- Cord Length 8 ft
- Cord Type SJTW 5-15 3 Prong Plug
- Includes Built-in Wheels, One 4 in x 9 ft Wire-reinforced PVC Inlet Hose and Clamps, Upper and Lower 30-Micron Cloth Bags
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3AA28
- MPN: 3AA28
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8421390115
- GDS Category Name: Dust Collectors
- GDS Family Name: Abrasive Blasting
- GDS Segment Name: Abrasives
- UNSPSC: 40161503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Filters
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Dust collectors
- UNSPSC Family ID: 16
- UNSPSC Family Name: Industrial filtering and purification
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
