Fume/Smoke Exhauster 9 ft L 5in Dia Hose MPN:3AA23
SKU
226-CXO-3AA23

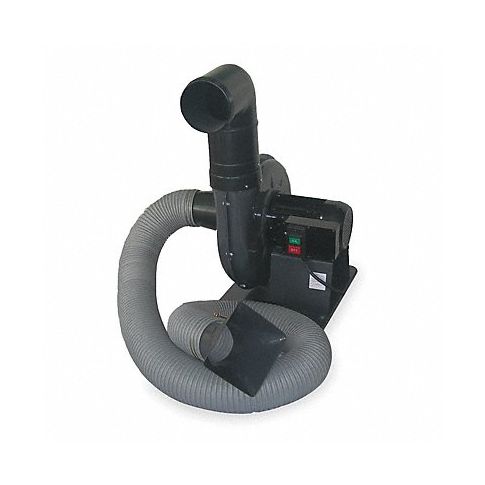

Fume/Smoke Exhauster 9 ft L 5in Dia Hose
Introducing the powerful Fume/Smoke Exhauster from Dayton, designed to efficiently remove hazardous fumes and smoke from work areas in industrial settings. This heavy-duty, steel unit features a high-performing 1 HP motor that produces up to 6,900 FPM at zero static pressure. Its steel impeller in fiberglass housing ensures durability and efficiency even in tough environments. With a maximum CFM of 1,100 and an extra-long 9ft L x 5in Dia hose, this versatile exhaust system is perfect for welding shops, machine tool rooms, paint spray booths, and other areas where smoke and fumes need to be removed promptly and effectively. Reduce safety risks, improve air quality, and increase productivity with the Dayton Fume/Smoke Exhauster.
Top product features:
- Steel frame for durability
- Steel impeller in fiberglass housing for efficiency and tough environments
- Long hose for versatility
Top product applications:
- Welding shops
- Machine tool rooms
- Paint spray booths
Model features steel frame, steel impeller in fiberglass housing, and intake screen. TEFC, 3450 rpm, continuous-duty, ball bearing motor.
Technical Specifications
- Item Fume and Smoke Exhauster
- Type Industrial
- HP 1 1/2 hp
- Max. CFM @ 0 S.P. 1,100
- Max. FPM @ 0 S.P. 6,900
- Max. Static Pressure (In.) 5.6 in
- dBA @ 5 Feet 84
- Voltage 230/460
- Hz 60
- Phase 3
- Amps AC 4.2 A
- Outlet Hose I.D. (In.) 6 in
- Inlet Hose I.D. (In.) 5 in
- Max. Fume Temp. (Deg. F) 180
- Includes 8 Feet Power Cord and Pushbutton Motor Starter, 90 Degrees Sheet Metal Exhaust Elbow, One 9 Feet Wire-reinforced PVC Inlet Hose and Clamps
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3AA23
- MPN: 3AA23
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: Welding Fume Extractors
- GDS Family Name: Fume Extractors and Accessories
- GDS Segment Name: Welding
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
Category: Fume Extractors and Accessories
