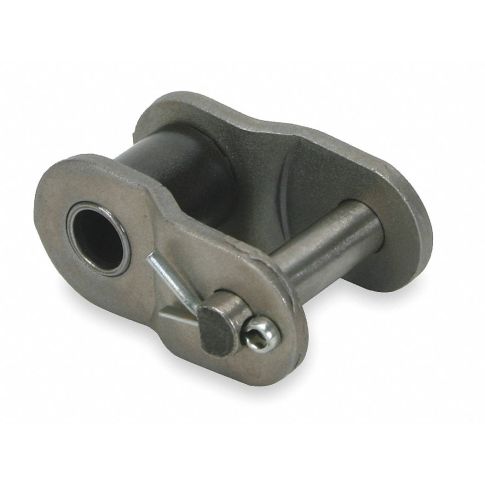

Offset Link Steel Riveted Pin 1 35/64 in MPN:2YED3
Offset Link Steel Riveted Pin 1 35/64 is a premium quality offset link designed for use in power transmission systems, chain and tools applications. The steel material provides high strength and durability, while the riveted construction ensures secure fastening of the pin. The size of 1-35/64 inches offers versatility in connecting various components together, making it suitable for professional users in industries such as manufacturing, automotive or construction. Its unique offset design allows for easy adjustment and increased clearance when assembling parts together. With its solid build quality, Offset Link Steel Riveted Pin 1 35/64 is an essential component for professionals working on power transmission and chain applications who need strong and secure links to ensure efficient performance of their systems.
Technical Specifications
- Item Offset Link
- Roller Chain Link Item Offset Link
- Roller Chain Link Type Standard Riveted
- Industry Chain Size 80
- Chain Link Material Carbon Steel
- Number of Strands Single
- Industry Chain Pitch 1 in
- Chain Link Overall Width 1.54 in
- Chain Roller Dia. 0.625 in
- Bushing Dia. 0.44 in
- Width Between Roller Link Plates 0.625 in
- Roller Link Plate Height 0.95 in
- Connecting End to Center Line 0.75 in
- Hole Dia. 0.314 in
- Rivet End to Center Line 0.636 in
- Pin Length 1.54 in
- Inside Pin Dia. 0.312 in
- Outside Pin Dia. 0.312 in
- Pin Link Plate Thickness 0.125 in
- Max. Allowable Load 3,300 lb
- Breaking Strength 12,500 lb
- Tensile Strength 12,500 lb
- Temp. Range 10 Degrees to 150 Degrees F
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2YED3
- MPN: 2YED3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7315900000
- GDS Category Name: Roller Chain Links
- GDS Family Name: Chain and Tools
- GDS Segment Name: Power Transmission
- UNSPSC: 31151609
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Chains
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Chain links
- UNSPSC Family ID: 15
- UNSPSC Family Name: Rope and chain and cable and wire and strap
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
