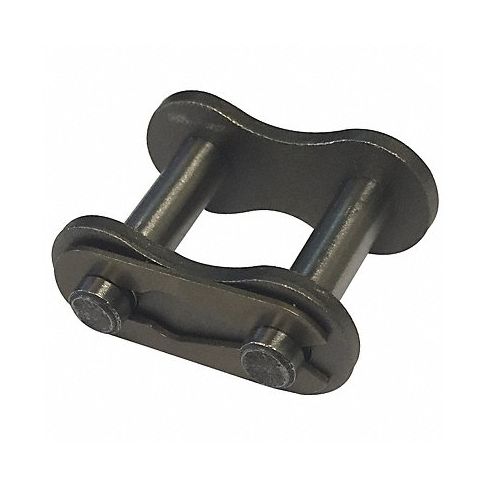

Connecting Link Steel Riveted 1 35/64 in MPN:2YED2
The Connecting Link Steel Riveted 1 35/64 in is an essential component in the manufacturing and fabrication of chain and chain link fences, ensuring secure connections between the different segments without any chance of breaking apart under tension or impact. These links are made from cold drawn steel with a zinc finish to prevent rust and corrosion while providing extra strength against bending and twisting forces. Its size is 1-35/64 inches with two holes on opposite ends allowing attachment through cotter pin installation ensuring stability and durability of the fence structure. This connecting link is suitable for farms, ranches, construction sites or anywhere where chain link fences need to be reinforced with additional joints without compromising security.
Technical Specifications
- Item Connecting Link
- Roller Chain Link Item Connecting Link
- Roller Chain Link Type Standard Riveted
- Industry Chain Size 80
- Chain Link Material Carbon Steel
- Number of Strands Single
- Industry Chain Pitch 1 in
- Chain Link Overall Width 1.54 in
- Chain Roller Dia. 0.625 in
- Bushing Dia. 0.44 in
- Width Between Roller Link Plates 0.625 in
- Roller Link Plate Height 0.95 in
- Connecting End to Center Line 0.75 in
- Hole Dia. 0.314 in
- Rivet End to Center Line 0.636 in
- Pin Length 1.54 in
- Inside Pin Dia. 0.312 in
- Outside Pin Dia. 0.312 in
- Pin Link Plate Thickness 0.125 in
- Max. Allowable Load 3,300 lb
- Breaking Strength 12,500 lb
- Tensile Strength 12,500 lb
- Temp. Range 10 Degrees to 150 Degrees F
- Includes Cotter Pins
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2YED2
- MPN: 2YED2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7315900000
- GDS Category Name: Roller Chain Links
- GDS Family Name: Chain and Tools
- GDS Segment Name: Power Transmission
- UNSPSC: 31151609
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Chains
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Chain links
- UNSPSC Family ID: 15
- UNSPSC Family Name: Rope and chain and cable and wire and strap
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
