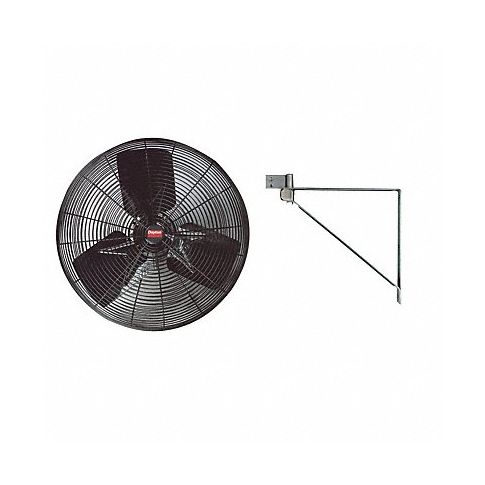

Light Dty Indstrl Fan 20 Blde Dia 2Spd MPN:2LY99

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Technical Specifications

• Item Light-Duty Industrial Fan
• Blade Diameter 20 in
• Wheeled Base Stationary
• Oscillation Non-Oscillating
• Watts 240/175
• Number of Speeds 2
• Voltage 120V AC
• Phase 1
• Air Flow 2600/3700 cfm
• Motor HP 1/8 hp
• RPM 1200/1000
• Amps 2.0/1.5
• Fan Mounting Location Ceiling, Wall
• Air Velocity @ 10 Ft. 820/580
• Air Velocity @ 20 Ft. 400/350
• Air Velocity @ 40 Ft. 200/190
• Air Velocity @ 60 Ft. 150/130
• Assembly Required Yes
• Sound Level 72 dBA
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Motor Enclosure Open Air-Over
• Motor Insulation Class B
• Motor Type Permanent Split Capacitor
• Thermal Protection Automatic Reset
• Bearing Type Ball
• Fan Cord Length 9 ft
• NEMA Plug Configuration 5-15P
• Height 29 1/4 in
• Width 23 in
• Depth 23 in
• Number of Blades 3
• Blade Material Aluminum
• Shaft Dia. 12 mm
• Fan Housing Material Steel
• Color Black
• Guard Material Steel
• Wire Guard Finish Polyester Powder Coated Black
• Number of Conductors 3
• Height Adjustment Fixed Height
• Drive Type Direct
• Standards cULus Listed
• Includes Mounting Hardware, Secondary Safety Support Cable, Wall/Ceiling Bracket
• Environmental Applications Industrial

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 2LY99
• MPN: 2LY99

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Industrial Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air circulators
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
