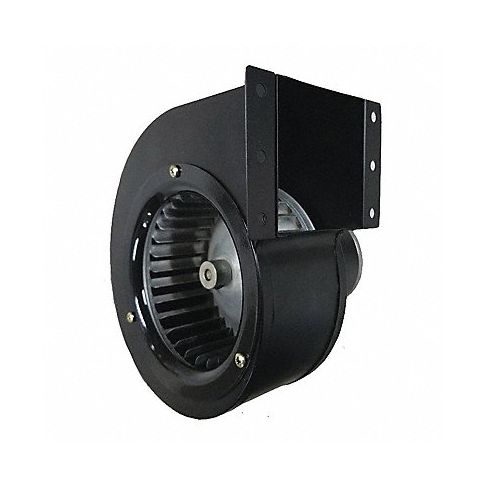

Blower 176 cfm 12VDCV 5.1A 1875 rpm MPN:2C646

Featuring all-position mounting, this dynamically balanced blower provides smooth and quiet operation. Noise and vibration are held to a minimum to maintain CFM at higher static pressures. The motor has cast-aluminum end shields for greater heat dissipation and protection, resulting in less downtime and longer service life.

Technical Specifications

• Item OEM Blower
• Blower Outlet Shape Rectangular
• With Flange Yes
• Blower Wheel Diameter 5 1/4 in
• Blower Wheel Width 2 1/2 in
• Blower Item OEM Specialty Blower
• Blower Voltage 12V DC
• Blower Motor Type DC
• Blower Thermal Protection No Thermal Protection
• Blower Conduit Box No
• CFM @ 0.000-In. SP 176
• CFM @ 0.100-In. SP 170
• CFM @ 0.200-In. SP 165
• CFM @ 0.300-In. SP 159
• CFM @ 0.400-In. SP 153
• CFM @ 0.500-In. SP 148
• Phase 1
• Full Load Amps 5.10
• RPM 1875
• Bearing Type Ball
• Motor Enclosure Totally Enclosed
• Motor Insulation Class B
• Lead Length 37 in Black - 10 in Red
• Max. Ambient Temp. 104 Degrees F
• Max. Inlet Temp. 104 Degrees F
• Inlet Dia. 4 1/2 in
• Outlet Height 3 1/8 in
• Outlet Width 3 in
• Overall Height 8 in
• Overall Width 6 3/16 in
• Overall Depth 7 7/16 in
• Wheel Type Forward Curve
• Drive Type Direct
• Mounting Position All Position
• Housing Finish Baked Enamel
• Housing Material Steel
• Housing Color Black
• Agency Compliance CE and RoHS Compliance
• Dimension A 7 7/16 in
• Dimension B 8 in
• Dimension C 5 11/16 in
• Dimension D 3 1/8 in
• Dimension F 3 in
• Dimension J 4 5/8 in
• Dimension K 3 1/8 in
• Dimension L 3 15/16 in
• Dimension M 2 3/8 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 2C646
• MPN: 2C646

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
