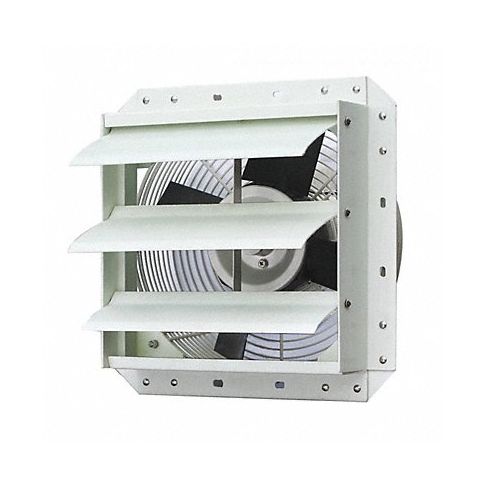

Exhaust Fan 12In Bl Fiberglass 115V MPN:1BLH8
The Exhaust Fan 12In Bl Fiberglass 115V from Dayton is an excellent choice for corrosive environments where dependability is essential. Its epoxy-coated wire guards make it OSHA compliant, and its vertical-mount design ensures easy installation. With a fan voltage of 115V AC, this exhaust fan provides powerful air circulation in various applications such as HVAC and refrigeration systems. The fiberglass blades can withstand corrosive atmospheres, and the thermally protected motor ensures durability. The fan's shutter-mount design makes it ideal for a wide range of applications, making it an essential tool in various industries. This product is a cost-effective solution for any business looking to improve airflow and ventilation while ensuring the safety of their workers.
Top product features:
- Fiberglass blades for corrosive atmospheres
- OSHA-compliant epoxy-coated wire guards
- Thermally protected motor
Top product applications:
- HVAC and Refrigeration systems in corrosive environments
- Ventilation systems for chemical plants or labs with corrosive gases and vapors
- Exhaust system for kitchen hoods in restaurants with high heat and humidity
Technical Specifications
- Item Exhaust Fan
- Type Corrosion Resistant Shutter Mount
- Blade Dia. 12 in
- Fan Voltage 115V AC
- Exhaust/Supply Fan Item Exhaust Fan
- Max. Ambient Temp. (F) 104 Degrees F
- CFM @ 0.000-In. SP 900 cfm
- CFM @ 0.125-In. SP 712 cfm
- CFM @ 0.250-In. SP 440 cfm
- CFM @ 0.375-In. SP 152 cfm
- Sones @ 0.000-In. SP @ 5 Ft. 6.8
- Hz 60
- Phase 1
- Full Load Amps 1.3 A
- Exhaust/Supply Fan Motor HP 1/8 hp
- Bearing Type Sealed Ball
- Motor RPM 1,625 RPM
- Motor Type Permanent Split Capacitor
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Height (In.) 15 in
- Width (In.) 15 in
- Max. Depth (In.) 15 5/32 in
- Sq. Opening Required (In.) 13 in
- Frame Material Fiberglass
- Guard Material Steel
- Wire Guard Finish Epoxy Coated
- Propeller Material Fiberglass Reinforced Polypropylene
- Number of Blades 4
- Speed Control No
- Thermal Protection Auto
- Agency Compliance cULus listed
