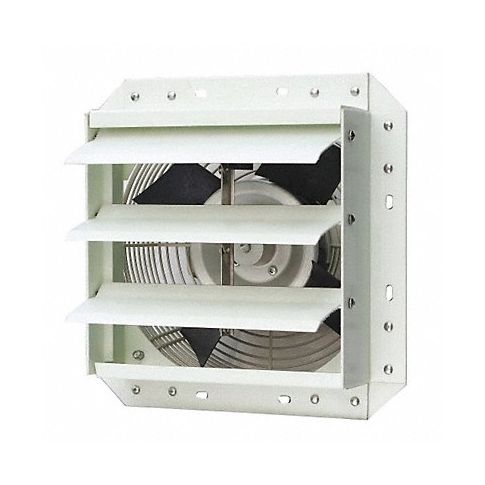

Exhaust Fan 10In Bl Fiberglass 115V MPN:1BLH6
Introducing the Exhaust Fan 10In Bl Fiberglass 115V from Dayton, an ideal solution for your ventilation needs in both commercial and residential settings! This reliable fan is designed to provide efficient air flow and withstand corrosive atmospheres, making it perfect for a wide range of applications. The epoxy-coated wire guards on the propellers ensure maximum safety while the thermally protected motor offers added durability. The Exhaust Fan 10In Bl Fiberglass 115V boasts a powerful 0.8 horsepower motor and is OSHA-compliant, ensuring its compliance with strict safety standards. Its vertical mounting design allows for easy installation, while the robust construction guarantees long-lasting performance. Use it to improve indoor air quality in garages, workshops, laundry rooms or any area that requires efficient ventilation! Say goodbye to poor indoor air and order your Exhaust Fan 10In Bl Fiberglass 115V from Dayton today!
Top product features:
- Corrosion-resistant construction: Protects against damage from corrosive atmospheres
- Epoxy-coated wire guards: Provides added safety and durability
- Thermally protected motor: Ensures long-lasting, efficient performance
Top product applications:
- Ventilate garages, workshops, and laundry rooms to remove fumes and improve indoor air quality
- Assist in exhausting hot air from stovetop ventilation hoods or dryer vents
- Remove moisture and odors from bathrooms, kitchens, and other damp areas
Technical Specifications
- Item Exhaust Fan
- Type Corrosion Resistant Shutter Mount
- Blade Dia. 10 in
- Fan Voltage 115V AC
- Exhaust/Supply Fan Item Exhaust Fan
- Max. Ambient Temp. (F) 104 Degrees F
- CFM @ 0.000-In. SP 652 cfm
- CFM @ 0.125-In. SP 363 cfm
- CFM @ 0.250-In. SP 246 cfm
- Sones @ 0.000-In. SP @ 5 Ft. 6.6
- Hz 60
- Phase 1
- Full Load Amps 0.6 A
- Exhaust/Supply Fan Motor HP 1/20 hp
- Bearing Type Sealed Ball
- Motor RPM 1,645 RPM
- Motor Type Permanent Split Capacitor
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Height (In.) 13 in
- Width (In.) 13 in
- Max. Depth (In.) 12 15/16 in
- Sq. Opening Required (In.) 10 1/2 in
- Frame Material Fiberglass
- Guard Material Steel
- Wire Guard Finish Epoxy Coated
- Propeller Material Fiberglass Reinforced Polypropylene
- Number of Blades 4
- Speed Control No
- Thermal Protection Auto
- Agency Compliance cULus listed
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 1BLH6
- MPN: 1BLH6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Axial Exhaust and Supply Fans with Motor
- GDS Family Name: Exhaust Fans
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 4, 2023 11:50pm UTC Category: Exhaust Fans
