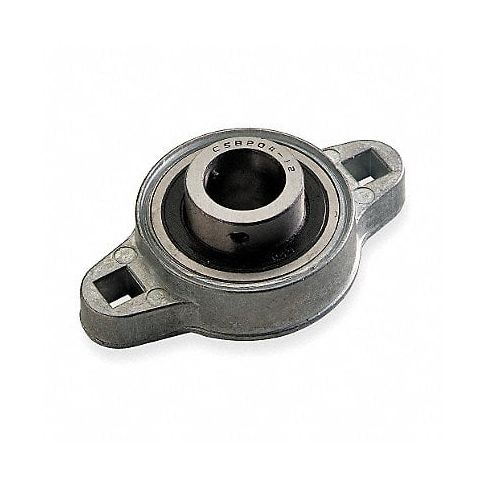

2 Bolt Flange Brg Radial Ball 5/8in Bore MPN:1A397
The 2 Bolt Flange Bearing with 5/8 bore diameter is an ideal solution for various industrial applications where durability, reliability and easy maintenance are essential. Made from high quality steel, this radial ball bearing features a simple structure of outer ring, inner ring, two metal shields and rolling elements that create less friction, noise and wear during operation, allowing machinery to run smoother with reduced power consumption. Its compact design makes it compatible for use in space-constrained environments while the 2-bolt flange fitting provides easy installation and secure mounting onto shafts or spindles. Suitable for various industries like automotive, aerospace, food & beverage or construction, this cost-effective bearing is built to withstand tough conditions and increase overall system efficiency while requiring minimal maintenance in return.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 5/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Zinc Die Cast
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 1/2 in
- Series F2DC-BL
- Bolt Size 1/4 in
- Overall Height 1 1/16 in
- Overall Width 2 in
- Overall Length 3 1/4 in
- Dynamic Load Capacity 2,152 lb
- Static Load Capacity 1,075 lb
- Temp. Range -30 Degrees to 200 Degrees F
- Finish None
- Includes (2) Set Screws
- Dimension B 3 1/4 in
- Dimension C 2 1/2 in
- Dimension D 2 in
- Dimension E 2 1/2 in
- Dimension F 1 1/16 in
- Dimension H 1/2 in
- Dimension J 9/32 Sq.
- Dimension L 1 1/16 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 1A397
- MPN: 1A397
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
