Stndrd Dty Indstrl Fan 18 Blde Dia 2Spd MPN:13F045
SKU
226-CXO-13F045

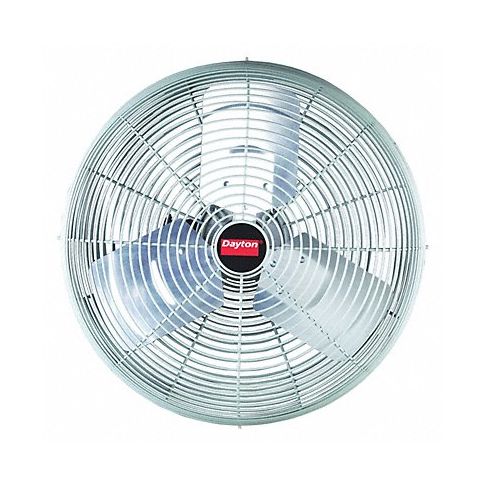

Stndrd Dty Indstrl Fan 18 Blde Dia. 2Spd
Upgrade your cooling game with our Standard-Duty Industrial Fan! With its powerful motor and 18-inch blade diameter, it can move massive amounts of air, making it perfect for heavy manufacturing areas and other dusty or dirty environments. The high-performance bearings ensure a long life for the fan, while the totally enclosed motor keeps dirt and dust out. Its guard encloses the fan blades to help prevent damage and injuries from accidental contact. This durable fan is great for cooling down your manufacturing area or warehouse and maintaining comfortable temperatures. Plus, it's easy to mount on a separate bracket, making it versatile enough to use in any space you need cooling! Don't let heat get the best of you, grab a Standard-Duty Industrial Fan today!
Top product features:
- Totally enclosed motor
- High-performance bearings
- Guard encloses fan blades
Top product applications:
- Cooling heavy manufacturing areas
- Industrial cooling and temperature-regulation
- Maintaining comfortable temperatures in warehouses or other large spaces
Standard-duty industrial fan heads provide cooling in heavy manufacturing areas and other dusty or dirty environments. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.Industrial fan heads are assemblies for replacing a broken fan head on an existing mount or pairing with a new mount to create a fan suited for a specific environment or application. These fan blade, motor, and guard assemblies are used with a separate base or mounting bracket. They are made of heavy-gauge materials suitable for daily use in industrial cooling and temperature-regulation applications. Their powerful motor drives the fan blades to move large volumes of air, is totally enclosed to keep out dirt and dust, and features high-performance bearings for a long life. The guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 18 in
- Wheeled Base Stationary
- Oscillation Non-Oscillating
- Watts 220/160
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 2950/4550 cfm
- Motor HP 1/4 hp
- RPM 1100/850
- Amps 2.0/1.4
- Fan Mounting Location Fan Head Only
- Air Velocity @ 10 Ft. 620/460
- Air Velocity @ 20 Ft. 365/315
- Air Velocity @ 40 Ft. 100/50
- Assembly Required No
- Sound Level 72 dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Automatic Reset
- Bearing Type Ball
- Fan Cord Length 10 ft
- NEMA Plug Configuration 5-15P
- Height 21 in
- Width 21 in
- Depth 13 1/8 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Color Gray
- Guard Material Steel
- Wire Guard Finish Polyester Powder Coated Gray
- Number of Conductors 3
- Height Adjustment Fixed Height
- Drive Type Direct
- Standards cULus Listed
- Includes Mounting Bolts
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 13F045
- MPN: 13F045
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 10:50am UTC
Category: Cooling Fans and Air Circulators
