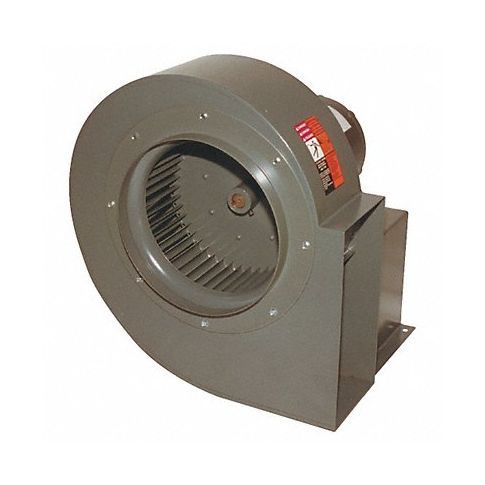

This blower duct features an outside diameter of 10 5/8 inches, making it suitable for various HVAC and refrigeration applications where a powerful airflow is required. It comes with a high-strength galvanized steel construction, ensuring long-lasting durability and resistance against corrosion. The blower duct's dimensions allow efficient air distribution in confined spaces or large-scale installations, making it ideal for industrial, commercial, and residential settings. Easy installation and customizable options make this product an excellent choice for professional contractors, maintenance personnel, and DIY enthusiasts looking to upgrade their ventilation systems.
High-VolumeGreat for medium pressures; combine characteristics of high-volume and high-pressure blowers. 16-ga. steel housing with welded, airtight joints. Heavy steel wheel. All motors are rigid mounted.Single-Inlet Forward Curve Direct-Drive Blowers • Housing can be rotated to 8 discharge positions in each rotation Welded steel construction Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FProvide high-volume ventilation when duct systems are required. Motor packed separately when ordered with blower.Note: Review OSHA codes. OSHA complying guards are required where fan blades are exposed and within reach of personnel.
Technical Specifications
- Item Blower
- Type With Motor
- Wheel Dia. (In.) 10-5/8
- CFM @ 1.500-In. SP 1848
- CFM @ 1.75-In. SP 1735
- CFM @ 2.000-In. SP 1610
- CFM @ 2.250-In. SP 1457
- CFM @ 2.500-In. SP 1288
- CFM @ 2.75-In. SP 1047
- dBA @ 5 Feet 63
- Blower RPM 1725
- Max. Inlet Temp. (Deg. F) 180
- Max. Ambient Temp. (F) 104
- Voltage 115/230
- Hz 60
- Phase 1
- Full Load Amps 20.4/10.2
- Motor HP 1-1/2
- Motor RPM 1725
- Motor Type Capacitor Start
- Motor Enclosure Open Dripproof
- Bearing Type Ball
- Height (In.) 21
- Width (In.) 16
- Depth (In.) 17
- Inlet Dia. (In.) 10
- Outlet Height (In.) 11-3/4
- Outlet Width (In.) 5-7/8
- Wheel Width (In.) 4
- Wheel Bore (In.) 7/8
- Wheel Material Steel
- Rotation CW Viewing Drive Side
- Housing Material Steel
- Housing Finish Gray Polyester Epoxy
- Assembled/Unassembled Unassembled
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7C409
- MPN: 7C409
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
