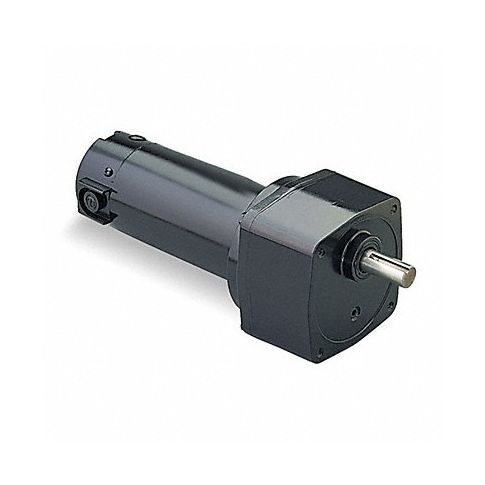

DC Gearmotor 42 rpm 90V TENV MPN:M1135238.00

Technical Specifications

• Item DC Gearmotor
• Gearmotor Type DC Gearmotor
• Gearmotor Voltage 90V DC
• Max. Torque 280.0 in-lb
• Gearmotor Shaft Type Single
• Gearmotor Shaft Orientation Parallel
• Rear Shaft Encoder/Pulse Generator Mounting No
• Nameplate RPM 42 RPM
• Gearmotor Enclosure Totally Enclosed Nonventilated
• Gearmotor Mounting Position All Angle
• Length Less Shaft 11 5/16 in
• Reversible Shaft Output No
• Overhung Load 327 lb
• Input HP 1/4
• Gear Ratio 58:1
• Full Load Amps 2.3 A
• Thermal Protection None
• Max. Ambient Temp. 40 Degrees C
• Gearmotor Rotation CW/CCW
• Motor Type Permanent Magnet DC
• Overall Length 12 15/16 in
• Shaft Dia. (Dimension U) 3/4"
• Shaft Length (Dimension V) 1-5/8"
• Bearings Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
• Lubrication Permanent Heavy Fluid Gear Oil
• Brushes Externally Replaceable
• Gear Material Hardened Steel
• Gear Type Helical and Spur
• Gear Case Die Cast Aluminum
• Seals Heavy Duty Industrial
• Housing Material Die Cast Aluminum
• Standards CSA Certified, UL Recognized

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: M113523800
• MPN: M1135238.00

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501314000
• GDS Category Name: DC Gearmotors
• GDS Family Name: Gearmotors
• GDS Segment Name: Power Transmission
• UNSPSC: 26101603
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Motors
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Direct current DC motors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Power sources
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
