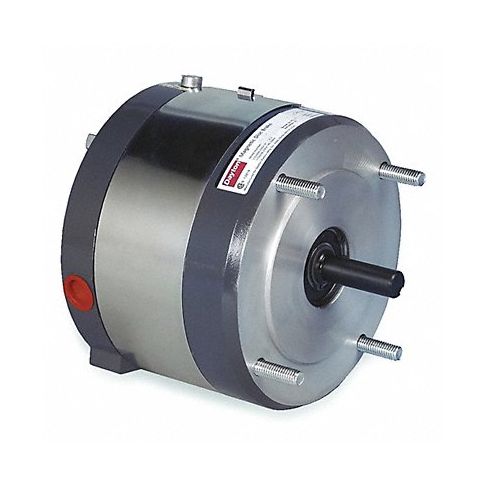

Brake Motor 6 Ft Lb MPN:3M366
Introducing the Brake Motor 6 Ft Lb from Dayton - the ideal solution for adding direct-acting spring-set brakes to your C-face motors or gearmotors. Perfect for indoor applications such as conveyors and door openers, this durable brake motor provides powerful braking capabilities and easy installation. With a double C-face magnetic disc brake design, the brake offers excellent holding power in both static and dynamic conditions, ensuring your equipment is safe and secure when power is off. The 5/8 inch shaft bushing makes it compatible with various motors and gearmotors, while its washdown-certified construction guarantees long-lasting performance even in harsh environments. Upgrade your equipment today with the Brake Motor 6 Ft Lb from Dayton!
Top product features:
- Direct-acting spring-set brakes use 1 moving part for easy installation
- Double C-Face Magnetic Disc Brakes provide powerful braking capabilities and holding power
- Compatible with various motors and gearmotors, with a 5/8 inch shaft bushing
Top product applications:
- Holding equipment in place during power off conditions
- Slowing down and stopping motion on conveyors
- Safety braking for door openers and hoists
Technical Specifications
- Item Brake
- Type C- Face Magnetic Disc
- Static Torque (Ft.-Lb.) 6
- Shaft Dia. (In.) 5/8 in
- Enclosure Dripproof
- Voltage @ 60 Hz 115/208-230
- Voltage @ 50 Hz 110/208-220
- Coil Volts 115/208-230V AC Or 110/208-220V AC
- Phase Single
- Max. RPM 3,450 RPM
- Max. HP @ 1725 RPM 2 hp
- Max. HP @ 3450 RPM 3 hp
- Ambient (C) 40 Degrees C
- Hz 60/50
- NEMA/IEC Frame 56C/140TC
- Lever Type Manual
- Mounts On NEMA C Face Motor or Between Motor and Reducer
- Finish Epoxy Paint
- Brake Mouting Position Horizontal
- Application For Rapid Stopping and Holding Power Conveyors, Door Openers and General Machine Drives
- Converts NEMA C-Face Motor to a Brake Motor, NEMA C-Face Gear Reducer to a Brake Gearmotor
- For Use With Single Phase Motors or When Wired per Instructions
- Agency Compliance CSA
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3M366
- MPN: 3M366
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8505200000
- GDS Category Name: Brakes and Clutches
- GDS Family Name: Brakes and Clutches
- GDS Segment Name: Power Transmission
- UNSPSC: 26112105
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Industrial braking systems
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Electrical braking systems
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
