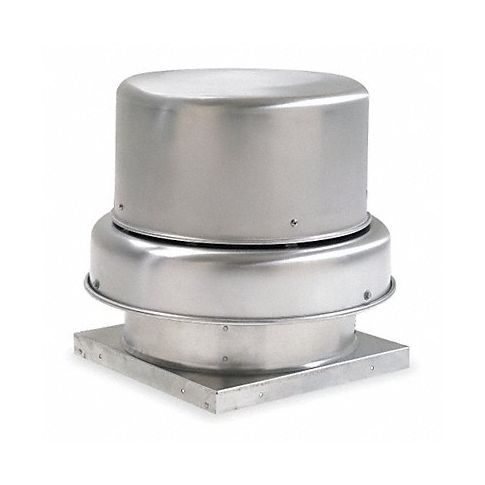

Alu 29 Dia 26.6 H Roof Fan w.Motor MPN:2RB64
The Alu 29 Dia 26.6 H Roof Fan w.Motor is a versatile tool that stands out with its ability to deliver precision airflow while remaining efficient, silent, and resistant to dust accumulation. Made of high-quality aluminum alloys and featuring motors up to 0.37 kW, it excels in HVAC systems installed on both commercial and residential rooftops where ventilation demands are constantly rising, offering powerful air circulation that can be precisely controlled to suit any room's requirements efficiently without producing excessive noise pollution making it ideal for libraries or meeting spaces where silence is golden. Furthermore, its easy installation process ensures that property owners and installers enjoy stress-free processes while experiencing unmatched satisfaction post-installation with their HVAC systems performing flawlessly year after year even in harsh environments characterized by dust accumulation or challenging weather conditions where other fans would struggle to survive let alone deliver optimal performance.
Technical Specifications
- Item Downblast Ventilator
- Drive Type - Roof Ventilators Belt Drive
- Duty Rating - Roof Ventilators Standard
- Drive Package With Motor Included Yes
- Voltage - Roof Ventilators 115V AC/208V AC/230V AC
- Motor HP - Roof Ventilators 1/2 hp
- Base Size - Roof Ventilators 26 in x 26 in
- Number of Speeds 1
- Mounting Location - Roof Ventilators Roof
- Wheel Dia. 14 3/4 in
- Item - Roof Ventilators Downblast Ventilator
- CFM @ 0.000-In. SP 2523
- CFM @ 0.125-In. SP 2433
- CFM @ 0.250-In. SP 2347
- CFM @ 0.375-In. SP 2259
- CFM @ 0.500-In. SP 2166
- CFM @ 0.625-In. SP 2062
- CFM @ 0.750-In. SP 1943
- CFM @ 0.875-In. SP 1793
- CFM @ 1.000-In. SP 1602
- Sones @ 0.125-In. SP @ 5 Ft. 14.3
- Sones @ 0.250-In. SP @ 5 Ft. 13.9
- Sones @ 0.500-In. SP @ 5 Ft. 13.1
- Phase 1
- Hz 60
- Max. Operating Amps 7.2/3.6
- Max. BHP 0.53 hp
- RPM 1360
- Base Height 1 3/4 in
- Overall Dia. 28 3/8 in
- Overall Height 25 3/8 in
- Shaft Dia. Wheel End 3/4 in
- Max. Inlet Temp. 180 Degrees
- Housing Material Spun Aluminum
- Wheel Material Aluminum
- Wheel Type Backward Inclined Centrifugal
- Speed Controllable No
- Adj. 12 3/8"H Roof Curb Stock No. 2ZV83
- Adj. 6 3/8"H Roof Curb Stock No. 4C454
- Assembled/Unassembled Assembled
- Recommended 12 In. Fixed Curb Item No. 2RB77
- Recommended 8 In. Fixed Curb Item No. 4HX40
- Agency Compliance AMCA Sound, Air, UL/cUL 705, CSA Certified Motor
- Dimension A 26 in
- Dimension B 28 3/8 in
- Dimension C 25 3/8 in
- Dimension D 4 in
- Includes NEMA 1 Junction Box
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2RB64
- MPN: 2RB64
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: Centrifugal Downblast Roof Exhaust Fans with Motor
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
