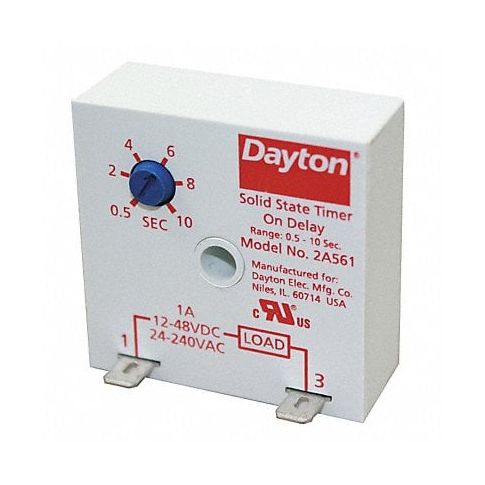

Timing Relay 24 to 240VAC 12 to 48VDC 1A MPN:2A561
SKU
226-CXG-2A561
Timing Relay 24 to 240VAC 12 to 48VDC 1A
Introducing the Single Function Encapsulated Timing Relay from Dayton - the perfect solution for any timing application in your home or workplace. With its on delay function, this reliable relay allows you to time out any electrical device, saving energy and reducing costs. The universal input voltage of 24 to 240VAC/12 to 48VDC means it can be used with various systems, while the 1A solid state output ensures long-lasting performance. Its compact size and easy-to-use features make it an ideal choice for high duty cycle applications in industries such as automation, security, and lighting control. Upgrade your timing requirements today with the Dayton Single Function Encapsulated Timing Relay!
Top product features:
- Timing Range: On Delay function with a timing range of 0.2-10 second
- Universal Input Voltage: accepts 24 to 240VAC/12 to 48VDC input
- High Duty Cycle/Long Life Output: 1A solid state output for high duty cycle/long life applications
Top product applications:
- Security systems Automatic locking/unlocking of doors/gates/access points
- Home appliances Scheduled power on/off for lights/electronics to save energy
- Lighting Control Programmable scene setting for ambient lighting in a room
The encapsulated time delay relay features an On Delay function with a timing range of 0.2-10 second and universal input voltage of 24 to 240VAC/12 to 48VDC. The 1A solid state output is perfect for high duty cycle/long life applications. Terminations are 0.25” male quick-connect terminals.
Technical Specifications
- Item - Relay Single Function Encapsulated Timing Relay
- Function - Timing Relay On Delay
- Input or Control Voltage 12 to 48V DC, 24 to 240V AC
- AC Contact Rating - Relay 1.00A @ 24 to 120V
- DC Contact Rating - Relay 1.00A @ 12 to 24V
- Mounting - Relay Surface
- Contact Form - Relay SPST-NO
- Adjustment Method - Timer Potentiometer
- Min. Time Setting - Timer 0.5 sec
- Max. Time Setting - Timer 10 sec
- Type of Output Solid State
- Body Height - Relay 0.79 in
- Body Width - Relay 2.0 in
- Body Depth - Relay 2.0 in
- Overall Height - Relay 1.14 in
- Number of Pins - Relay 2
- Status Indicator None
- Hz - Electrical 50 Hz, 60 Hz
- Standards cURus
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2A561
- MPN: 2A561
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490050
- GDS Category Name: Encapsulated Time-Delay Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121519
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Time relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
